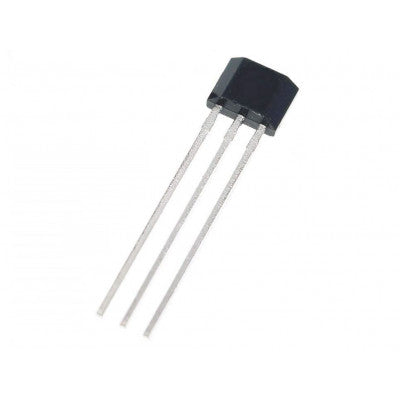

Hall Effect Sensor-Bipolar WSH130
Your all-in-one solution for speed measurement, revolution counting, positioning, and DC brushless motors
Designed to integrate Hall sensor with output driver on the same chip, the Hall Effect Sensor-Bipolar WSH130 operates on a wide range of supply voltage with reverse voltage protection. It is the perfect sensor for comprehensive application in a versatile setting.
- Feature: Works on 2.4 V to 26 V supply voltage
- Feature: Works with magnetic fields up to 15 kHz
- Feature: On-chip Hall Sensor and temperature compensation
- Feature: Ideal for speed measurement, revolution counting, positioning, and DC brushless motors
The WSH130 also benefits from on-chip protection, minimizing shifts in on and off points and hysteresis over temperature and supply voltage. Experience the ease from magnetic South pole (On) to North pole (Off), with this sensor at your disposal.
- Reverse Protection Voltage: 26 V
- Output ON Current (continuous): 25 mA
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -65°C to +150°C
- Package: 1 x Hall Effect Sensor - Bipolar - WSH130
