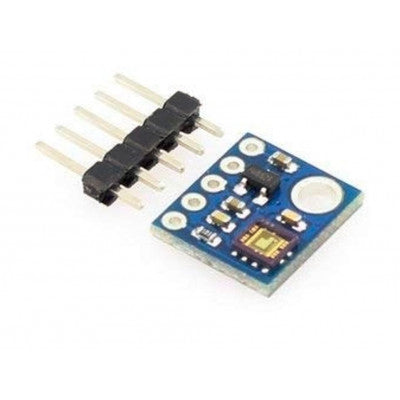

GYML8511 Analog Output Ultra-Violet Light Sensor Module
Analog UV light sensor with embedded amplifier for accurate readings.
- Operating voltage (VCC): 3 V to 5V
- Operating current: 120?A (typical) 190?A (max)
- Operating Temperature: -40°C ~ +85°C
- Photodiode sensitive to UV-A and UV-B
- Embedded operational amplifier
- Analog voltage output
- Low supply current: 300?A type
- Low standby current: 0.1?A type
Top Features:
- Accurate UV-A and UV-B detection
- Embedded operational amplifier for precise readings
- Analog voltage output for easy interfacing
- Low power consumption for efficiency
The GYML8511 module is an easy-to-use ultraviolet light sensor that outputs an analog signal proportional to the detected UV light. It is ideal for creating devices that warn against sunburn or monitor UV index for weather conditions. This sensor is most effective in detecting 280-390nm light, falling under the UVB and UVA spectrums. The analog voltage output is linearly related to the measured UV intensity in mW/cm2. Simply connect the module's output to an ADC channel of a microcontroller to read UV light intensity.
Applications include sunburn detectors, controlled UV exposure chambers, and UV detectors for human and animal safety.
* Images are for illustration only; actual product may vary.
