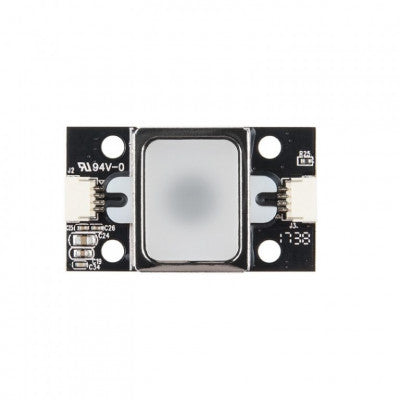

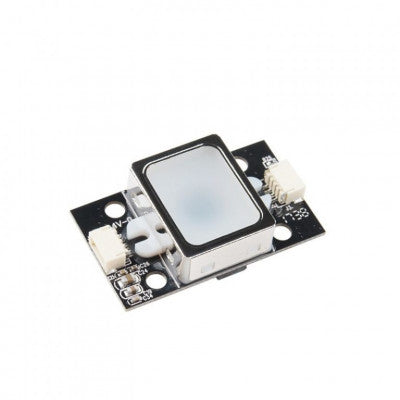

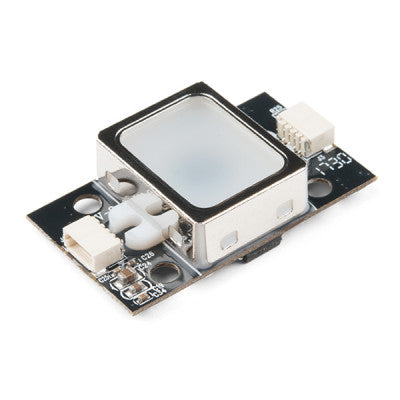

GT521F52 Optical Fingerprint Scanner Module with JST SH Connector
High-performance optical fingerprint scanner for access control and security.
- Sensor: GT521F52 Optical
- Finger window(mm): 12.9 x 16.9
- No. of fingerprints can store: 3000
- Resolution: 450 dpi
- Operating Voltage(V): Power pin: 3.3V~6V, Tx/Rx pins: 3.3V
- Operating Current (mA): < 130

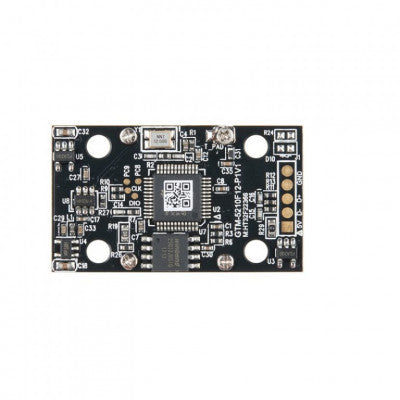

- CPU: ARM Cortex M3 Core MCU
- The size of template: 496 Bytes (template) + 2 Bytes (checksum)
Features:
- Ultra-thin Optical Sensor
- High-accuracy & high-speed fingerprint identification
- Works with dry, moist, or rough fingerprints
- 3000 fingerprints storage
The GT521F52 Fingerprint Scanner Module is an optical scanner module designed for easy integration into applications with a serial interface (UART). It has a fingerprint storage capacity of 3000 fingerprints and operates at a resolution of 450 dpi. The module features a high-accuracy and high-speed fingerprint identification technology, making it suitable for various applications such as access control and security.
The module is equipped with an ARM Cortex M3 Core MCU processor and can store fingerprint templates on-board. It supports simple UART & USB communication protocols, with an external UART-to-USB converter required for communication at 3.3V levels. The module complies with USB 2.0 full-speed specifications and allows for reading & writing fingerprint templates from/to the device.

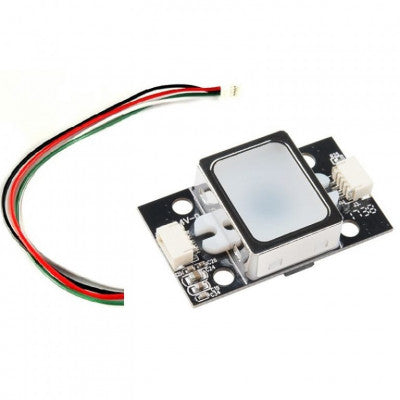

Package Includes: 1 x GT521F52 Optical Fingerprint Scanner Module, 2 x 1 mm pitch 4 pin JST SH Connector.
Additional Information:
- Image Size: 258 x 202 Pixels
- False Acceptance Rate (FAR): < 0.001%
- False Rejection Rate (FRR): < 0.1%
- Enrollment Time: < 3 sec (3 fingerprints)
- Identification Time: < 1.5 sec
*Images are for illustration only; actual product may vary.
