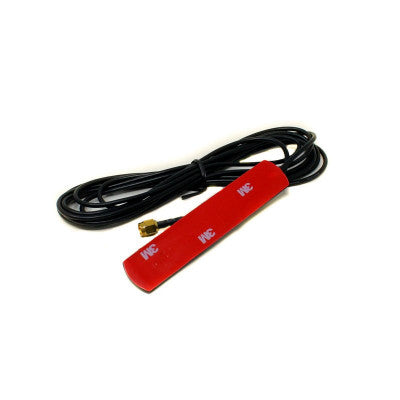

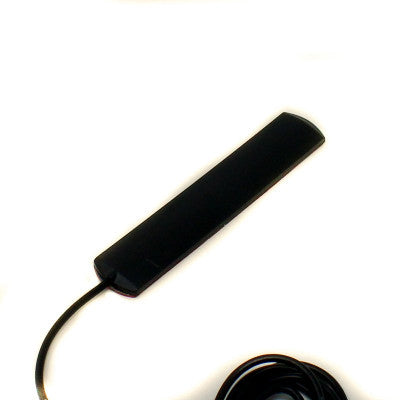

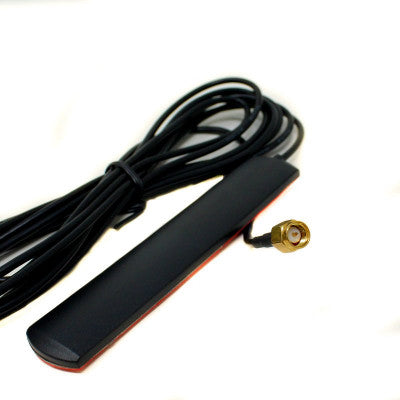

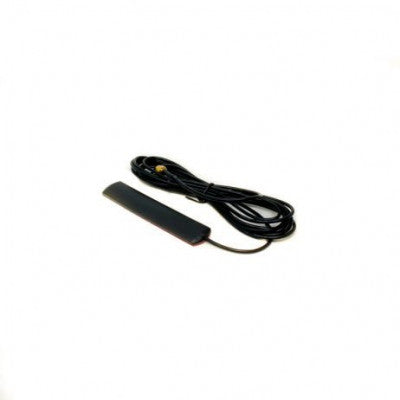

GSM Sticker Antenna
A compact and low-cost antenna for GSM communication
- Model: LWC-GSM-STICKER-03
- Frequency: 824-960 MHz & 1710-1980 MHz
- Gain: 28 dBi
- Impedance: 50
- VSWR: < 2.5
- Polarization: Linear
- Power Handling (W): 10
- HPBW: H: 3600 ; V: 300 / 400
- Connector: SMA Plug
- Operating Temperature (C): -30 to 60
- Humidity: 5-75%
- Length (mm): 115
- Width (mm): 22
- Height (mm): 5
- Weight (gm): 50
Top Features:
- Compact Size
- Low Cost
- Connector of your choice
- Customizable cable length (suggested <5m)
This GSM Antenna operates at frequencies of 824-960 MHz & 1710-1980 MHz with a gain of 28 dBi. It is a wireless device used for signal reception and transmission in telecommunication applications. The sticker antenna is preferred for its cost-effectiveness in radio modules.
Package Includes: 1 x GSM Sticker Antenna with SMA Connector
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
