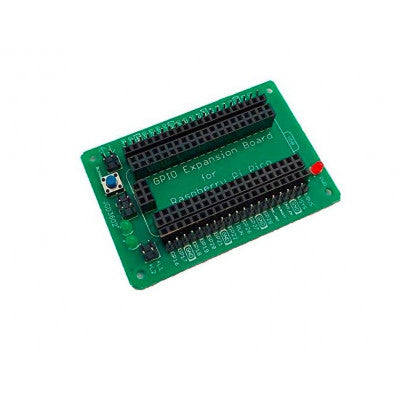

Raspberry Pi Pico GPIO Expansion Board
An advanced accessory for Raspberry Pi Pico, enhancing project development.
- Power Indicator: 1 x RED LED (Indicate PICO is Powered ON/OFF)
- Push buttons: Release (Not Pressed) = Logic 0, Pressed = Logic 1 (INPUT)
- Programmable/Test Led: 2 x Green LED, OUTPUT: LED On = 1, LED Off = 0
- Package includes: 1 x GPIO Expansion Board for Raspberry Pi Pico
Top Features:
- 2 x Programmable Independent Controlled Led (Green)
- 1 x Power Led
- 1 x Independent Controlled Push Button
- Easy to interface: Male and Female Berg Connection Interface

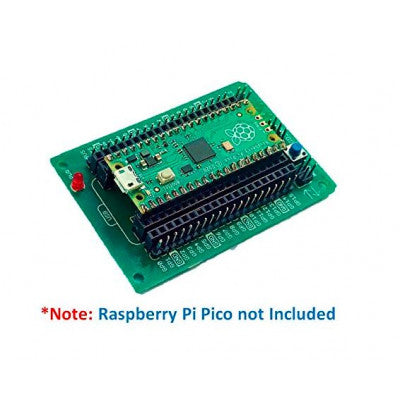

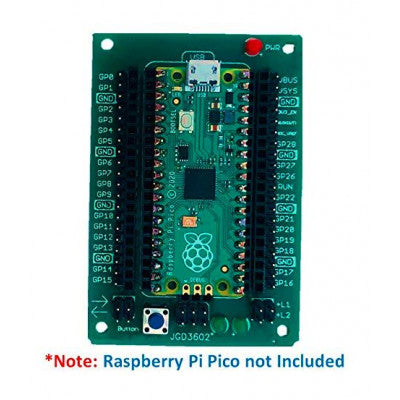

The Raspberry Pi Pico GPIO Expansion Board breaks out all the pins and power of the Raspberry Pi Pico development board via male or female headers. It allows users to connect it to other components using jumper wires, enhancing the learning experience and enabling project development based on ideas with the Raspberry Pi Pico.
Board Details:
- Power Indicator: 1 x RED LED (Indicate PICO is Powered ON/OFF)
- Push buttons: Release (Not Pressed) = Logic 0, Pressed = Logic 1 (INPUT)
- Programmable/Test Led: 2 x Green LED, OUTPUT: LED On = 1, LED Off = 0
- Note: By default, Cathode Pins of Programmable LEDs are connected to Ground
Images are for illustration only; actual product may vary.
