TF Card MP3 Decoder Board with 2W Amplifier
Upgrade your audio experience with this versatile MP3 decoder board.
- Working Voltage: 3.7V Lithium Battery 600MA or 5V USB Power Supply
- Main Chip: GPD2846A
- Chip Footprint: SOP16
- PCB Size (LxWxH) mm: 35 x 23 x 1
Features:
- 2W Mixed Mono
- Automatic play with Power supply
- Multi-function LED indicator
- Supports MP3 format playback

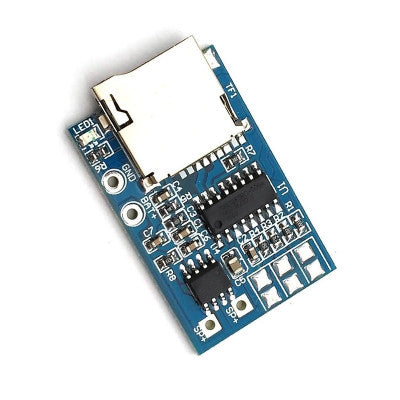

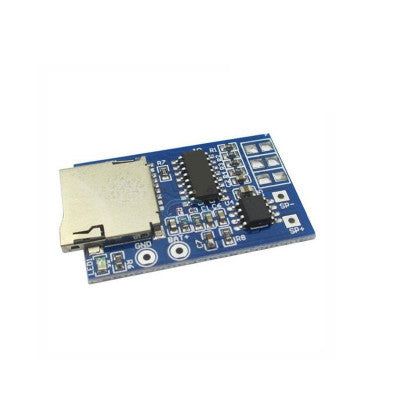

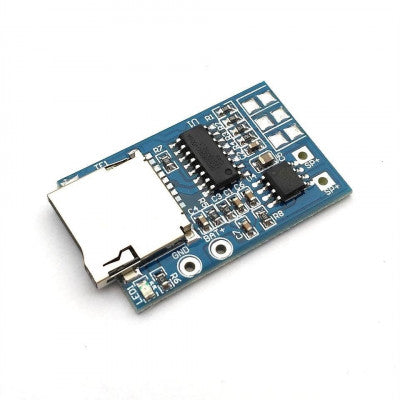

This TF card MP3 decoder board utilizes the GPD2856A MP3 decoder IC and features an onboard 2-watt L/R mixed mono audio amplifier IC (8002). It is an updated version of the GPD2846A TF card MP3 decoder board, now with a TF card slot for a micro-SD memory card and an LED power indicator. The board measures 35mm x 22mm and requires only a power supply, direct speaker connection, and switches. The recommended working voltage is 3.7 to 5V.
Note: This product is available in two different variants (GPD2846A and HW 195 JL) with the same functionality; we will ship randomly.
- Package Includes: 1 x GPD2846A TF Card MP3 Decoder Board 2W Amplifier Module
Specifications:
- Operating voltage (V): 5
- Chip: GPD2846A
- Chip Footprint: SOP16
- Length (mm): 38
- Width (mm): 22
- Height (mm): 4
- Weight (gm): 4
Images are for illustration only; actual product may vary.
