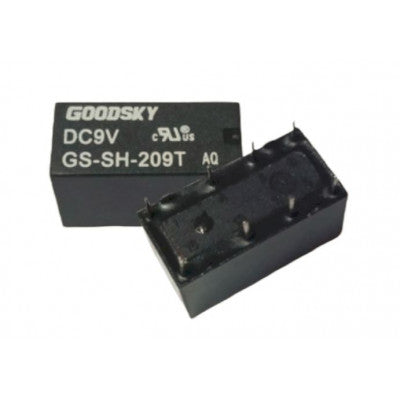

Goodsky 9V 2A DC GS-SH-209T 8 Pin DPDT PCB Mount Telecom Relay
An electrically operated switch with gold silver alloy contacts and various coil sensitivities.
- Part Number: GS-SH-209T
- Manufacturer: Goodsky
- Category: Relays
- Coil Voltage: 9VDC
- Coil Current: 40mA
- Contact Form: DPDT
- Contact Material: Ag Alloy
- Operate Time: 8ms
- Release Time: 4ms
- Coil Resistance: 125 Ohms
- Operating Temperature: -30°C ~ 85°C
- Features: Sealed – Fully
- Throw Configuration: DPDT
- Number of Pins: 8
- Case/Package: DIP
- Mount: PCB, Through Hole
Top Features:
- Gold Silver alloy contact for low switching application
- 2.54mm terminal pitch equivalent to I.C. Terminal
- Various coil sensitivity options available
- Plastic epoxy resin sealed type for washing procedure
A relay is an electrically operated switch used to control circuits with low-power signals. It has input terminals for control signals and operating contact terminals. Relays are essential in telecommunication, domestic appliances, office machines, audio equipment, and remote controls.
Relays were initially used in long-distance telegraph circuits as signal repeaters. They were also prevalent in telephone exchanges and early computers for logical operations.
Package Includes:
- 1 x Goodsky 9V 2A DC GS-SH-209T 8 Pin DPDT PCB Mount Telecom Relay
* Images are for illustration only; actual product may vary.
