DIN Rail Mount Dual Output Power Supply
Reliable power supply with built-in protection features
- Output: +12V 4A, -12V 1.5A
- Type: DIN Rail Mount Dual Output Type
- Approx. Wattage: 48W, 18W
- Series: G31 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 1 Year Warranty
- IP Level: Non-Waterproof
- Input Voltage: 180-270V AC
Top Features:
- Built-in Transient protector & EMI filter
- Short circuit, overload & overvoltage protection
- Low ripple & noise
- Compact and high efficiency

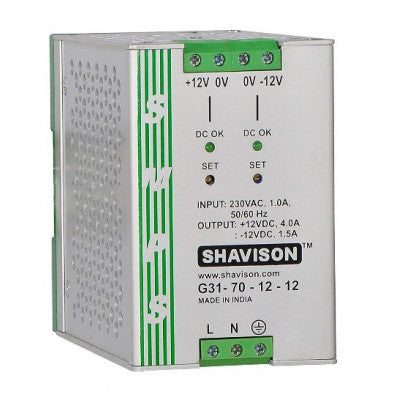

The DIN Rail Mount Dual Output Power Supply is designed for single-phase input and ensures high reliability. It features power OK indication, terminations, output set control, and rating details on the front panel. With a 1-year warranty, this power supply offers long life and high reliability at a low cost.
Specifications:
- ISOLATION Input – Output: 2KVAC, 1 minute
- ISOLATION Input – Earth: 2KVAC, 1 minute
- ISOLATION Output – Earth: 0.5KVAC, 1 minute
- EFFICIENCY: 70 ~ 75%
- O/P VOLTAGE ADJUSTMENT: +/- 10% of nominal output voltage
- OVERLOAD PROTECTION: 105% ~ 130% of rated load
- LINE & LOAD REGULATION: Better than 0.5% for both outputs
- HOLD UP TIME: > 20ms at rated input voltage and load
- OPERATING AMBIENT: 0 ~ 50°C, 95% RH
- STORAGE AMBIENT: -20°C to 85°C
- SAFETY STANDARD: Design refers to EN60950-1
- EMC STANDARD: Design refers to EN55022, EN55024
- TERMINATIONS: Screw type, for 2.5mm sq. wire
- MOUNTING: 35 mm DIN rail
- WEIGHT: 490 grams
For more technical details, refer to the G31-70-12-12 Shavison Datasheet.
* Images are for illustration only; actual product may vary.
