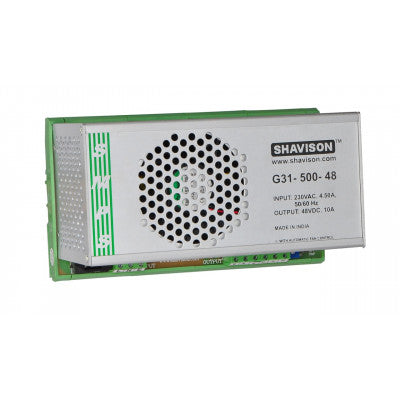

48V 10A DIN Rail Mount Power Supply
Reliable power supply with standard features and 1-year warranty
- Output Voltage: 48V
- Output Current: 10A
- Type: DIN Rail Mount Type
- Approx. Wattage: 480W
- Features: Standard
- Series: G31 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 1 Year Warranty
- IP Level: Non-Waterproof
- Input Voltage: 180-270V AC
Top Features:
- Single Phase Input
- Built-In Transient protector & EMI filter
- Protection against short circuit, overload, overvoltage & Overtemperature
- Forced Cooling with Internal fan
Power OK indication, terminations, output set control & rating details on the front. 100% full load burn-in tested for high reliability. Compact design with high efficiency, long life, and high reliability at a low cost. Comes with a 1-year warranty.
Specifications:
- ISOLATION
- Input – Output: 2KVAC, 1 minute
- Input – Earth: 2KVAC, 1 minute
- Output – Earth: 0.5KVAC, 1 minute
- EFFICIENCY
- 70 ~ 75%
- O/P VOLTAGE ADJUSTMENT
- +/- 10% of nominal output voltage
- OVERLOAD PROTECTION
- 105% ~ 130% of rated load
- LINE & LOAD REGULATION
- Better than 0.5%
- HOLD UP TIME
- > 20ms at rated input voltage and load
- OPERATING AMBIENT
- 0 ~ 50oC, 95% RH
- STORAGE AMBIENT
- -20oC to 85oC
- SAFETY STANDARD
- Design refers to EN60950-1
- EMC STANDARD
- Design refers to EN55022, EN55024
- TERMINATIONS
- Screw type, for 2.5mm sq. wire
- MOUNTING
- 35 mm DIN rail
- WEIGHT
- 1450 grams
Related Documents: G31-500-48 Shavison Datasheet
* Images are for illustration only; actual product may vary.
