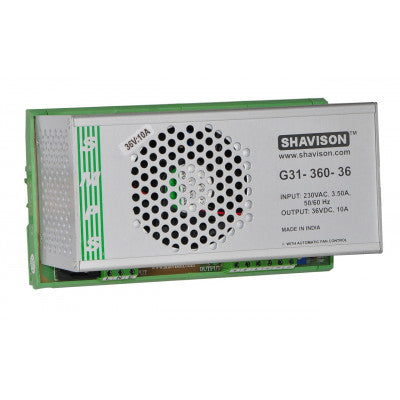

Shavison G31-360-36 DIN Rail Mount Power Supply
Reliable power supply with built-in protection features and high efficiency
- Output Voltage: 36V
- Output Current: 10A
- Type: DIN Rail Mount Type
- Approx. Wattage: 360W
- Features: Standard
- Series: G31 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 1 Year Warranty
- IP Level: Non-Waterproof
- Input Voltage: 180-270V AC
Top Features:
- Single Phase Input
- Built-In Transient Protector & EMI Filter
- Protection Against Short Circuit, Overload, Overvoltage & Overtemperature
- Forced Cooling with Internal Fan
The Shavison G31-360-36 DIN Rail Mount Power Supply is designed for high reliability and efficiency. It features power OK indication, terminations, output set control, and rating details on the front panel. The power supply is 100% full load burn-in tested, ensuring its reliability. With a compact design and long life, this power supply offers high efficiency at a low cost.
Specifications:
- ISOLATION: Input – Output: 2KVAC, 1 minute; Input – Earth: 2KVAC, 1 minute; Output – Earth: 0.5KVAC, 1 minute
- EFFICIENCY: 70 ~ 75%
- O/P VOLTAGE ADJUSTMENT: +/- 10% of nominal output voltage
- OVERLOAD PROTECTION: 105% ~ 130% of rated load
- LINE & LOAD REGULATION: Better than 0.5%
- HOLD UP TIME: > 20ms at rated input voltage and load
- OPERATING AMBIENT: 0 ~ 50°C, 95% RH
- STORAGE AMBIENT: -20°C to 85°C
- SAFETY STANDARD: Design refers to EN60950-1
- EMC STANDARD: Design refers to EN55022, EN55024
- TERMINATIONS: Screw type, for 2.5mm sq. wire
- MOUNTING: 35 mm DIN rail
- WEIGHT: 1400 grams
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
