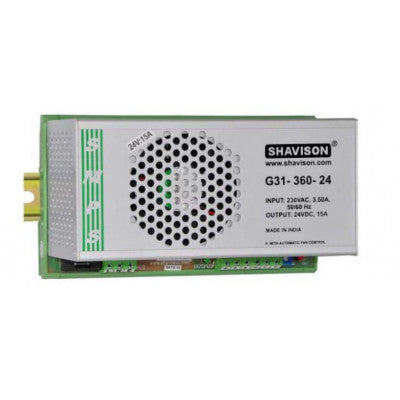

24V 15A DIN Rail Mount Power Supply
360W output power supply with built-in protections and high reliability
- Output Voltage: 24V
- Output Current: 15A
- Type: DIN Rail Mount Type
- Approx. Wattage: 360W
- Features: Standard
- Series: G31 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 1 Year Warranty
- IP Level: Non-Waterproof
- Input Voltage: 180-270V AC
Top Features:
- Single Phase Input
- Built-In Transient Protector & EMI Filter
- Protection Against Short Circuit, Overload, Overvoltage & Overtemperature
- Forced Cooling with Internal Fan
The 24V 15A DIN Rail Mount Power Supply is designed for high reliability and efficiency. It features power OK indication, terminations, output set control, and rating details on the front panel. With low ripple & noise, this power supply is compact, long-lasting, and cost-effective.
Specifications:
-
ISOLATION
Input – Output: 2KVAC, 1 minute
Input – Earth: 2KVAC, 1 minute
Output – Earth: 0.5KVAC, 1 minute -
EFFICIENCY
70 ~ 75% -
O/P VOLTAGE ADJUSTMENT
+/- 10% of nominal output voltage -
OVERLOAD PROTECTION
105% ~ 130% of rated load -
LINE & LOAD REGULATION
Better than 0.5% -
HOLD UP TIME
> 20ms at rated input voltage and load -
OPERATING AMBIENT
0 ~ 50oC, 95% RH -
STORAGE AMBIENT
-20oC to 85oC -
SAFETY STANDARD
Design refers to EN60950-1 -
EMC STANDARD
Design refers to EN55022, EN55024 -
TERMINATIONS
Screw type, for 2.5mm sq. wire -
MOUNTING
35 mm DIN rail -
WEIGHT
1400 grams
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
