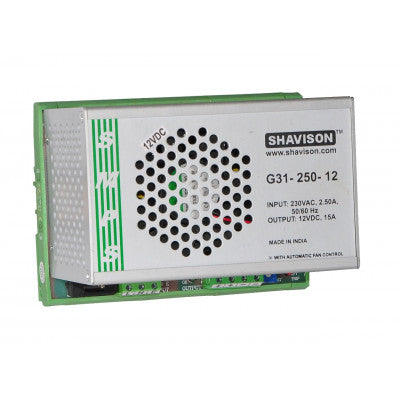

Shavison G31 DIN Rail Mount Power Supply
Reliable 180W power supply with built-in protections and high efficiency
- Output Voltage: 12V
- Output Current: 15A
- Type: DIN Rail Mount Type
- Approx. Wattage: 180W
- Features: Standard
- Series: G31 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 1 Year Warranty
- IP Level: Non-Waterproof
- Input Voltage: 180-270V AC
Top Features:
- Single Phase Input
- Built-In Transient Protector & EMI Filter
- Protection Against Short Circuit, Overload, Overvoltage & Overtemperature
- Low Ripple & Noise
The Shavison G31 DIN Rail Mount Power Supply offers high reliability and efficiency. It comes with power OK indication, terminations, output set control, and rating details on the front panel. This compact power supply is 100% full load burn-in tested and includes a 1-year warranty for peace of mind.
Specifications:
-
ISOLATION:
Input – Output: 2KVAC, 1 minute
Input – Earth: 2KVAC, 1 minute
Output – Earth: 0.5KVAC, 1 minute - EFFICIENCY: 70 ~ 75%
- O/P VOLTAGE ADJUSTMENT: +/- 10% of nominal output voltage
- OVERLOAD PROTECTION: 105% ~ 130% of rated load
- LINE & LOAD REGULATION: Better than 0.5%
- HOLD UP TIME: > 20ms at rated input voltage and load
- OPERATING AMBIENT: 0 ~ 50°C, 95% RH
- STORAGE AMBIENT: -20°C to 85°C
- SAFETY STANDARD: Design refers to EN60950-1
- EMC STANDARD: Design refers to EN55022, EN55024
- TERMINATIONS: Screw type, for 2.5mm sq. wire
- MOUNTING: 35 mm DIN rail
- WEIGHT: 990 grams
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
