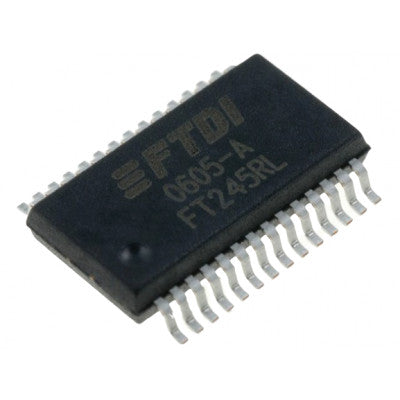

FT245RL USB to Parallel FIFO Interface
A robust single-chip USB to parallel FIFO bidirectional data transfer interface.
FT245RL offers the ability to upgrade legacy peripherals to USB, facilitate data transfer for cellular and cordless phones, interface with MCU/PLD/FPGA based designs and much more. It truly is at the heart of a wide range of devices and applications.
- Specification: FT245RL
- Storage Temperature: -65 to 150 °C
- Floor Life (Out of Bag) At Factory Ambient: 168 (IPC/JEDEC J-STD-033A MSL Level 3 Compliant)* Hours
- MTTF: 6607685 Hours
- Ambient Temperature (Power Applied): -40 to 85 °C
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- Entire USB protocol handled on the chip
- No USB specific firmware programming required
- Integrated EEPROM for storing device descriptors and FIFO I/O configuration
- Data transfer rates up to 1Mbyte / second with buffer smoothing technology
- Integrated USB termination resistors and clock generation
- Synchronous and asynchronous bit bang interface options
*Documents related to the FT245RL can be referenced via the FT245RL IC Datasheet.
