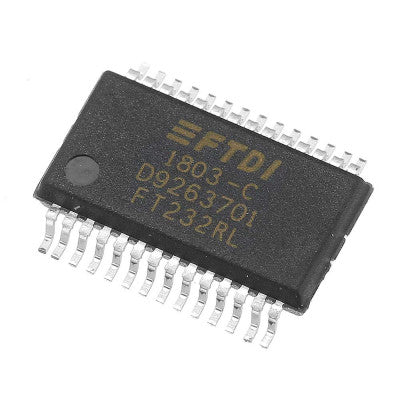

FT232RL USB UART Interface Integrated Circuit Device
A USB to serial UART interface with optional clock generator output and security dongle feature
The FT232RL is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices. It is a USB to serial UART interface which has an optional clock generator output and the new FTDIChip-ID™ security dongle feature. Its serial designs have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
- Application: USB to RS232/RS422/RS485 Converters, Upgrading Legacy Peripherals to USB, Interfacing MCU/PLD/FPGA based designs to USB and more
- Storage Temperature: -65 to 150 °C
- Floor Life (Out of Bag) At Factory Ambient: IPC/JEDEC J-STD-033A MSL Level 3 Compliant*
- MTTF FT232RL: 11162037 Hours
- Ambient Temperature (Power Applied): -40 to 85 °C
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- DC Output Current – Low Impedance Bidirectional: 24 mA
- Integrated EEPROM, clock circuit and USB resistors
- Optional clock output, enabling glue-less interface
- Data transfer rates from 300 baud to 3 Mbaud
- Power-on-reset circuit and supply filtering integrated
This device simplifies serial designs by fully integrating the essential components and it also allows for a high level of device customization and performance optimization.
