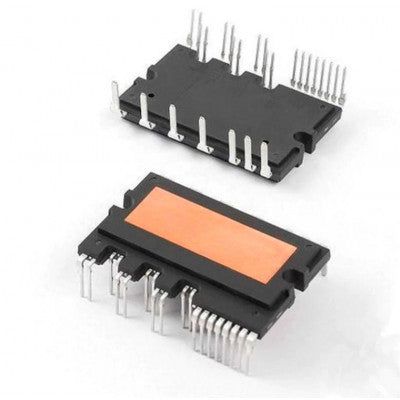

FSBB30CH60 Advanced Smart Power Module
An advanced smart power module designed for compact and high-performance AC motor drives.
- Supply Voltage: 450 V
- Supply Voltage (Surge): 500 V
- Collector-Emitter Voltage: 600 V
- Each IGBT Collector Current: 30 A
- Each IGBT Collector Current (Peak): 45 A
- Collector Dissipation: 103 W
- Package: SPM27-EA
Top Features:
- UL Certified No.E209204(SPM27-EA package)
- Low thermal resistance using DBC
- 600V-30A 3-phase IGBT inverter bridge
- Divided negative dc-link terminals for inverter current sensing
The FSBB30CH60 is an advanced smart power module designed for very compact and high-performance ac motor drives, with a focus on low power inverter-driven applications like air conditioners and washing machines. It features optimized circuit protection and drive matched to low-loss IGBTs, enhancing system reliability with integrated under-voltage lock-out and short circuit protection. The high-speed built-in HVIC enables optocoupler-less single-supply IGBT gate driving capability, reducing the overall size of the inverter system design. Each phase current of the inverter can be monitored separately due to the divided negative DC terminals.
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
