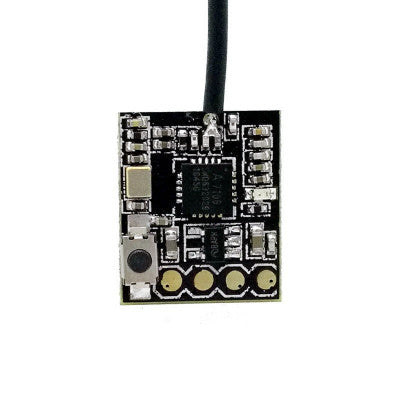

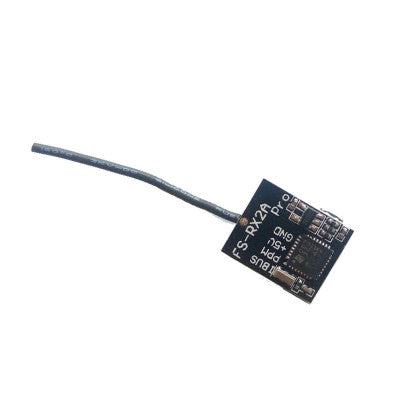

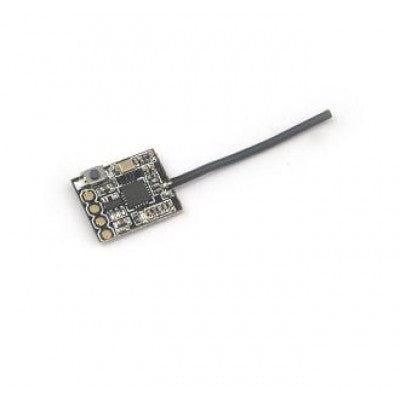

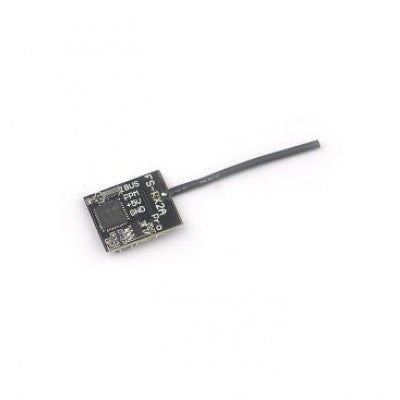

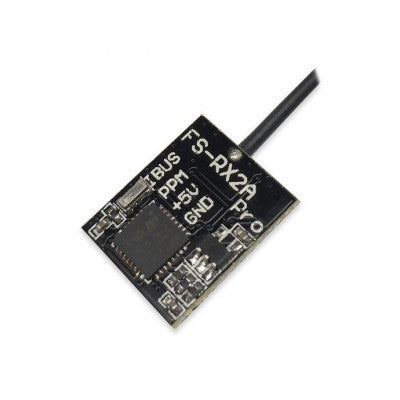

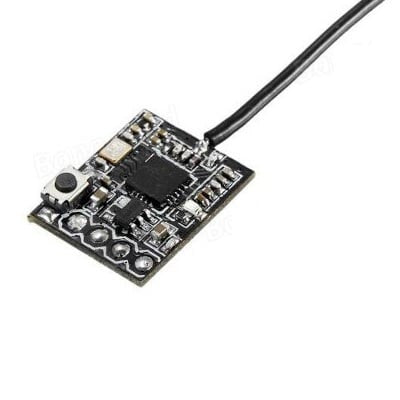

FS-RX2A Pro Radio Receiver Mini Receiver
A lightweight 1-way receiver for multi-rotor drones with i-BUS support.
- Model: FS-RX2A Pro
- No. of Channels: 10
- No. of Band: 135
- RF Range: 2.408-2.475GHZ
- Rx Sensitivity (dBm): -92
- Signal Output: IBUS, PPM
- Operating Voltage (VDC): 3.3 ~ 5V
- Current Consumption (mA): 30
- Control Distance: 400m+i-Bus
- Antenna Length (mm): 33
- Color: Black
- Net weight (gm): 1

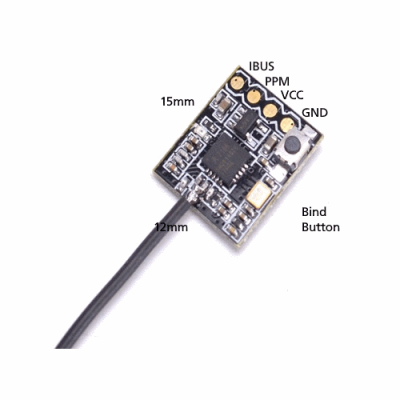

- Dimensions (mm) LxWxH: 12 x 15
Top Features:
- Stable AFHDS 2A protocol
- Supports standard PPM output
- i-BUS support for up to 10 channels
- Small and lightweight design (12 x 15 mm, 1.0g)
In the world of racing drones, the FS-A8S receiver fits the requirements superbly. It is small and lightweight, making it ideal for use in multi-rotor drones. The binding procedure is simple: press and hold the Binding button while supplying power to the receiver. The green LED will blink fast to indicate entering the binding mode. Make the transmitter enter BIND mode, and when the LED indicator blinks slowly, the binding succeeds. Quit the BIND mode on the transmitter, and the receiver LED indicator will stay on, indicating signal reception. Note that failsafe only works on IBUS, not in PPM.
Package includes: 1 x FS-RX2A Pro Radio Receiver
* Images are for illustration only; actual product may vary.
