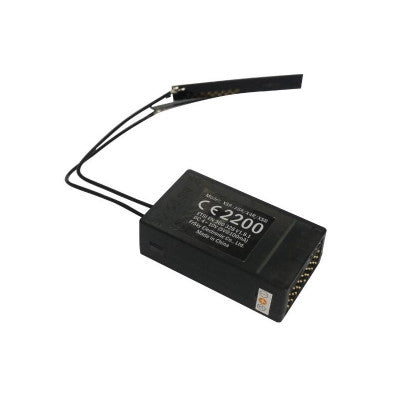

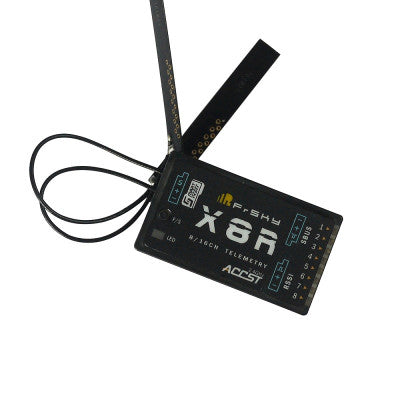

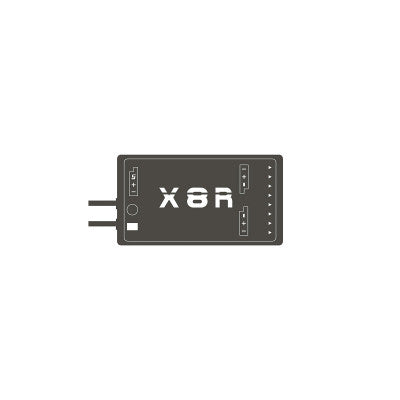

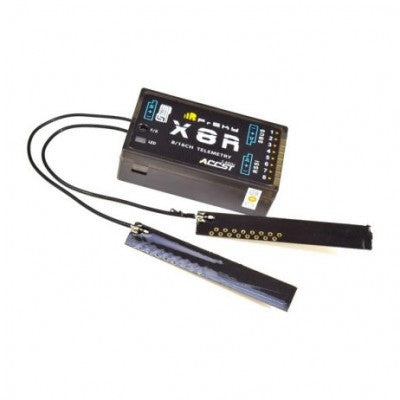

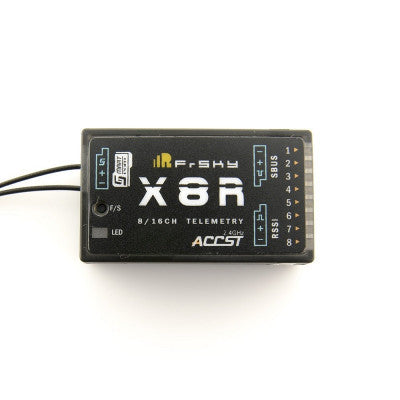

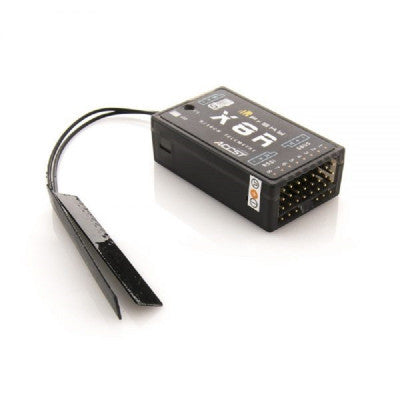

FrSky X8R 8/16ch Full Duplex Telemetry Receiver
Innovative receiver with Smart Port support and increased range
- Operating Voltage: 4.0~10V
- Operating Current: [email protected]
- Operating Distance Range: Full Range (>1.5km)
- No. of Channels: 16
- Length: 46.25mm
- Width: 26.6mm
- Height: 14.2mm
- Weight: 16.6g
Top Features:
- RSSI PWM output (0~3.3V)
- 16 channel capability with two X8R receivers
- SmartPort enabled for full-duplex transmission
- Supports 1~8ch from conventional outputs and 1~16ch from SBUS port
The FrSky X8R is a compact 8/16-channel receiver with Smart Port support, offering enhanced capabilities compared to its predecessors. It features Smart Port compatibility for hub-less and analog sensors, along with support for 8 standard servo outputs. By utilizing the Sbus line, users can access all 16 channels with Sbus supported servos or a FrSky S.BUS Decoder. Additionally, combining two X8R receivers allows synchronization of channels 1-8 on the first receiver and 9-16 on the second.
The X8 protocol is backward compatible, functioning in D8 mode with various transmitter modules like DHT, DJT, DFT, and DHT-U. While limited to 8 channels in this mode, users can still benefit from the Smart Port and digital sensors. The receiver boasts a new antenna design PCB, providing up to a 20% increase in range compared to older models. Furthermore, the X8R is firmware upgradeable, ensuring longevity and adaptability.
Designed for compatibility with the FrSky Taranis and D8 systems, the X8R is an ideal choice for users seeking to leverage digital Smart Port sensors and advanced functionalities.
Package Includes: 1 x FrSky X8R 8/16ch Full Duplex Telemetry Receiver
