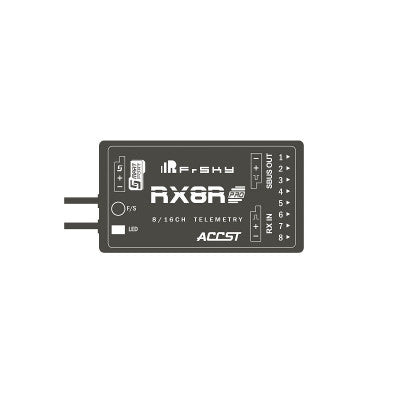

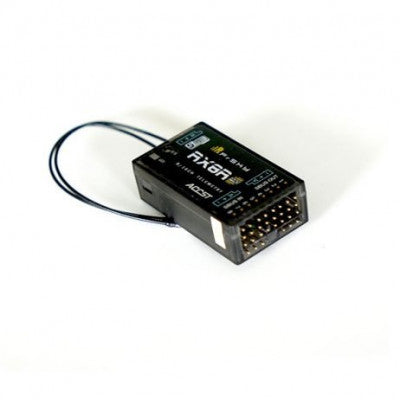

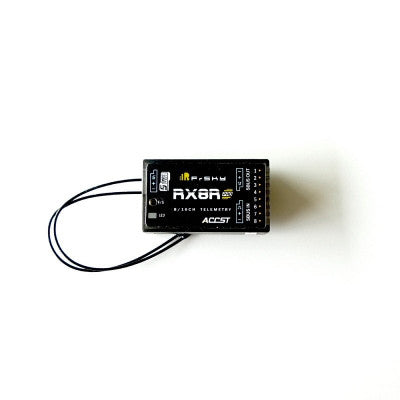

FrSky RX8R Pro
Upgrade your receiver with higher precision and lower latency
- Number of Channels: 16
- RSSI Output (DC Analog): 0~3.3V
- Servo Frame Rate: 9ms/18ms
- Operating Voltage (VDC): 3.5~10V
- Max. Operating Current (mA): 100mA@5V
- Operating Range: Full Range (>1.5km)
- Length (mm): 46.25
- Width (mm): 26.6
- Height (mm): 14.2
- Weight (gm): 15
Top Features:
- Strong anti-interference performance during ignition
- Higher precision PWM
- Lower latency PWM output
- Supports redundancy function
The FrSky RX8R Pro is an upgraded version of the RX8R receiver, offering higher precision and lower latency. It features a deviation of PWM reduced to 0.5us and a 9ms lower delay of PWM output compared to the X8R in high-speed mode. The RX8R Pro also reduces interference caused by the ignition process.
Redundancy Function: For the master and slave receivers, when the master receiver goes into failsafe, the output signal from the slave receiver will be used until the master receiver resumes operation. Note: When both the master and slave receivers go into failsafe, the failsafe signal from the master receiver will be output; The slave receiver should be in no telemetry mode.
Package Includes: 1 x FrSky RX8R Pro 2.4G ACCST 8/16CH SBUS Telemetry Receiver, 1 x User Manual
*Images are for illustration only; actual product may vary.
