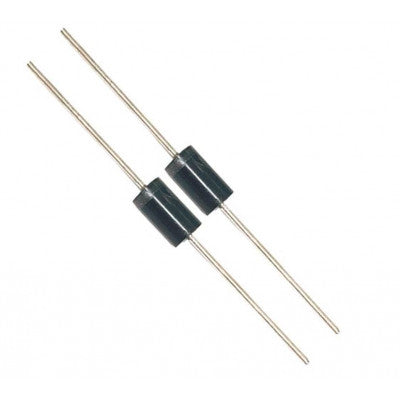

FR107 1.0A Fast Recovery Rectifier
Plastic Package with UL Flammability Rating 94V-0
- Peak Repetitive Reverse Voltage: 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Maximum Average Forward Rectified Current: 1 A
- Non-Repetitive Peak Forward Surge Current: 30 A
- Operating Junction Temperature Range: -65 to +175 °C
- Storage Temperature Range: -65 to +175 °C
Top Features:
- High Reliability and Low Leakage
- Fast Switching for High Efficiency
- DO-41 Molded Plastic Case
- Axial Lead Terminals, Solderable per MIL-STD-202
The FR107 is a 1.0A Fast Recovery Rectifier with a plastic package featuring a UL Flammability Classification Rating of 94V-0. It is capable of meeting the environmental tests in MIL-STD-750C. The rectifier offers high reliability, low leakage, and fast switching for high efficiency.
Its mechanical characteristics include a DO-41 molded plastic case, axial lead terminals that are solderable per MIL-STD-202 Method 208, and can be mounted in any position. The rectifier has a cathode band for easy polarity identification and weighs approximately 0.35 grams.
For more details or bulk pricing inquiries, please reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
