Foxeer Arrow V2 HS1190 FPV Camera
Upgrade your FPV experience with the advanced Foxeer Arrow V2 HS1190.
- Horizontal Resolution (TVL): 600
- Lens: 2.1mm
- Minimum Illumination: 0.01Lux/1.2F
- Electronic Shutter Speed: PAL
- Pixel Resolution: 1024 x 600
- Input Voltage Range(VDC): 5
- S/N Ratio (dB): >60
- Dimensions in mm (LxWxH): 26x26x32
- Weight (gm): 13
- Image Sensor: 1/3" SONY Super HAD II CCD
Top Features:
- 600TVL resolution
- Built-in FPV OSD (Voltage, Flight Time, Name)
- Built-in Audio
- Wide Dynamic Range (D-WDR)
The Foxeer Arrow V2 HS1190 is the advanced version of the Foxeer HS1177, featuring an excellent wide dynamic range and supporting a 5-35v input voltage range. It also includes an inbuilt OSD and MIC. The OSD displays battery voltage, flight time, and customizable user name. This V2 model boasts improvements over the V1, including three independently controlled OSD parameters, fixed OSD flashing issue, upgraded power module, 7-Pin battery consumption monitor, voltage calibration function, and easy OSD setup with a short cable connector. The camera comes with a high-quality 2.5mm lens and IR Block filter.
Package Includes:

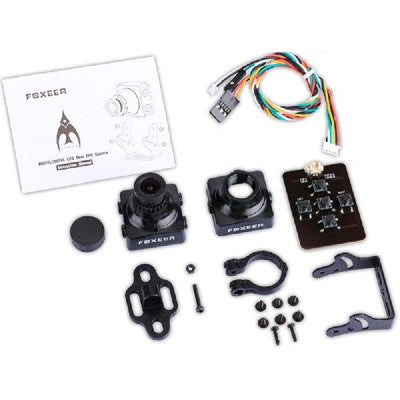

- 1 x HS1190 Foxeer Arrow Camera w/ OSD
- 1 x Metal bracket
- 1 x OSD control board
- 1 x Plastic rings set
- 1 x 7pin servo cable
- 1 x Spare Camera case
*Images are for illustration only; actual product may vary.
