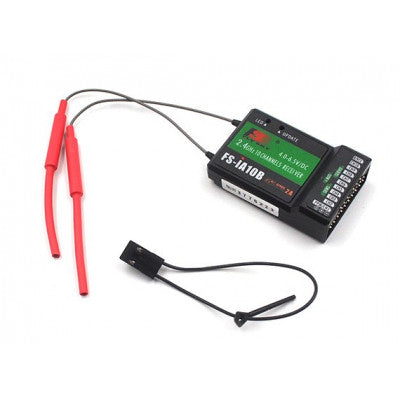

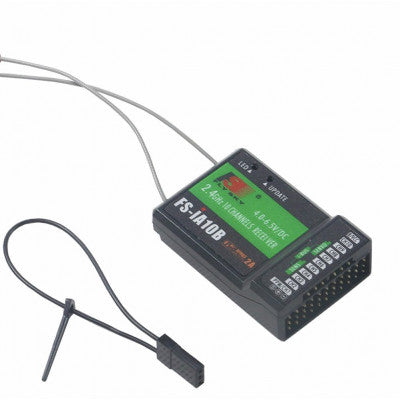

FlySky FS-IA10B Radio Receiver
Enhanced 10-channel receiver with iBUS, SBUS, PPM, and PWM capabilities
- Model: FS-IA10B
- No. of Channels: 10
- No. of Band: 140
- Encoding: GFSK
- Modulation Type: GFSK
- RF Range: 2.405-2.475 GHz
- Rx Sensitivity (dBm): -105
- Signal Output: IBUS, PPM
- Operating Voltage (VDC): 4.0 - 6.5
- Current Consumption (mA): 40
- Control Distance: 400m+
- i-Bus Interface: Yes
- Data Acquisition Interface: Yes
- Antenna Gain: 2dB
- Antenna Length (mm): 110
- Color: Black
- Net weight (gm): 15
- Dimensions (mm) LxWxH: 47 x 34 x 15
Top Features:
- Reliable 2.4GHz AFHDS 2A signal operation
- Compact, lightweight design

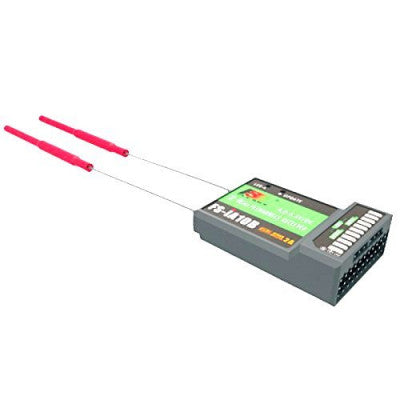

- Dual antennas for reliable operation
- Connection ports for telemetry sensors

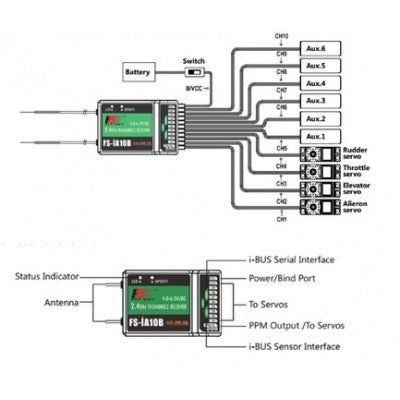

Building on the previous FlySky iA6B receiver, the FlySky FS-IA10B Radio Receiver offers enhanced control capabilities with iBUS, SBUS, PPM, and PWM support. The PPM/SBUS feature simplifies wiring for compatible flight controllers like the Naze32. With optional telemetry sensors, monitor flight data easily.
This 10-channel receiver is suitable for various models, offering full range coverage for both small and large models. Dual antennas ensure excellent reception and interference rejection, with a reported range of over 1km. For optimal performance, position the antennas at a 90-degree angle.

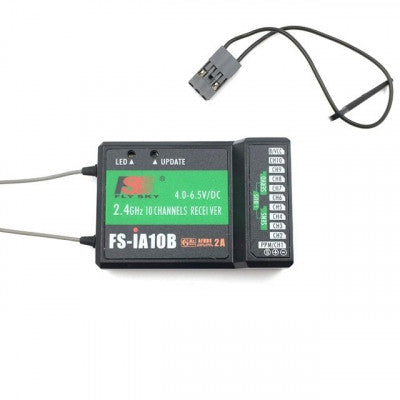

The FS-IA10B, though slightly larger than the FS-iA6B, maintains a compact design with end-on connectors for neat installations in tight spaces.
How to bind the RX (receiver) to the TX (transmitter):
1. Plug bind plug into BAT and turn on the plane/heli. The LED light should flash (ensure power is connected to RX via ESC).
2. Hold down the bind button on the transmitter module while turning on the TX. The light should become steady.
3. Release the bind button, turn off the plane/heli, remove the bind plug, and turn off the TX.
4. Turn on the TX and then turn on the plane/heli.
Compatible Radios:
- Flysky i4
- Flysky / Turnigy i6
- Flysky / Turnigy i10
- Flysky FS-i10
- FS-GT2E
- FS-GT2G
* Images are for illustration only; actual product may vary.
