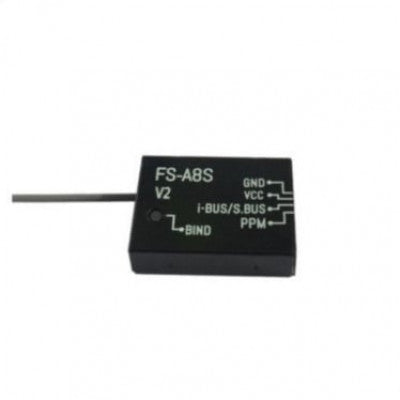

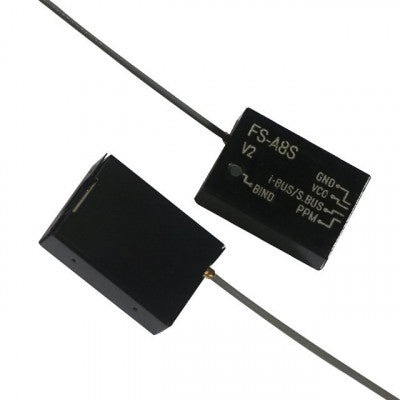

FlySky FS-A8S 2.4G 8CH Mini Receiver Rev 2
Compact and lightweight receiver for multi-rotor drones
- Model: FS-A8S 2.4G 8CH Mini Rx
- Operating Voltage (VDC): 4.0 ~ 8.4V
- Current Consumption (mA): 40
- Control Distance: 300m
- No. of Channels: 8 (PPM), 18 (i-BUS)
- No. of Band: 135
- Modulation Type: GFSK
- RF Range: 2.408-2.475 GHz
- Bandwidth: 500KHz
- Rx Sensitivity (dBm): -92

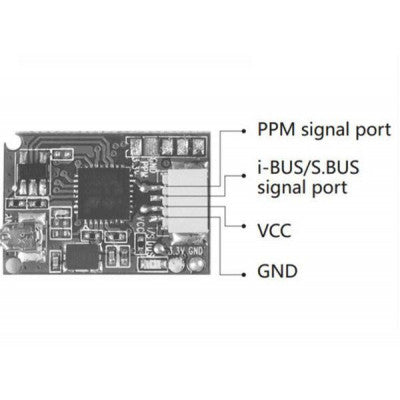

- Signal Output: IBUS, PPM
- i-Bus Interface: Yes
- Antenna Length (mm): 90
- Color: Black
- Net weight (gm): 6

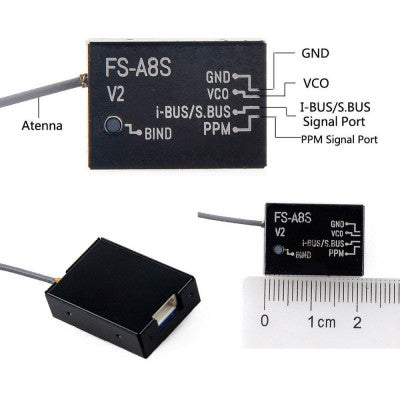

- Dimensions (mm) LxWxH: 20 x 14 x 5.3
Top Features:
- AFHDS 2A 2.4GHz system
- SC port: PPM/i-BUS/S.BUS
- Channel delay <15mS
- Certificate: CE0678
In the world of racing drones, the FlySky FS-A8S 2.4G 8CH Mini Receiver Rev 2 stands out for its small size of 20x14x5.3mm and lightweight design of 1.2gm. It utilizes the stable AFHDS 2A protocol, supports PPM output, and offers i-BUS support for up to 18 channels. This receiver is compatible with FS i4 i6 i6S i6X TM10 TM8 Transmitters.
Package Includes:
- 1 x FlySky FS-A8S 2.4G 8CH Mini Receiver module Rev 2

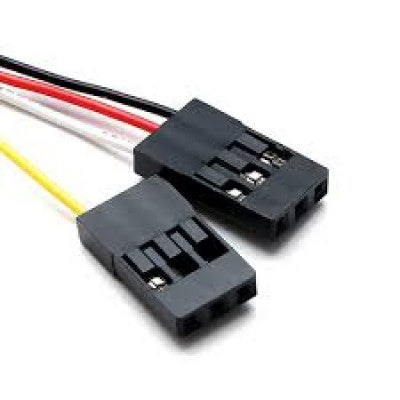

- 1 x Connecting Cable
*Images are for illustration only; actual product may vary.
