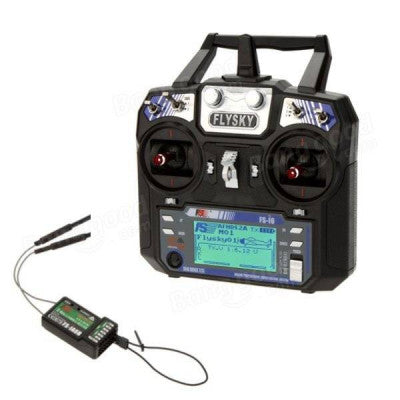

FlySky FS-i6 2.4GHz 6-Channel Transmitter and Receiver
A reliable and budget-friendly option for controlling various models with ease.
- No. of Channels: 6 Channels
- Model Type: Glider/Heli/Airplane
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF Power: Less Than 20dBm
- 2.4GHz System: AFHDS 2A and AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2; Output: PPM
- Charger Port: No
- ANT Length: 26mm*2 (dual antenna)
- Weight: 392 gm
- Power: 6V (1.5AA x 4 Not Included)
- Display Mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.
- Size: 174 x 89 x 190 mm (LxWxH)
- On-line update: yes
- Color: Black
- Certificate: CE0678, FCC
- Model Memories: 20
- Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.
Top Features:
- Telemetry capability
- 20 Model Memory
- Backlit LCD Screen
- Trainer and charging ports
The FlySky FS-i6 is an entry-level 6-channel 2.4GHz transmitter and receiver that utilizes reliable Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. It is equipped with a FS-iA6 6-channel receiver, making it suitable for controlling various models including Quadcopetrs, Multirotor, Heli, and Airplane.
The ergonomic ultra-slim case design of the FS-i6 reduces hand fatigue during long flights. It features digital trims, a backlit LCD screen, and simple programming for ease of use. The low profile antenna ensures easy storage without the worry of breakage. Additionally, the adjustable length sticks and neck strap loop enhance comfort during use.
The FS-i6 includes a 3-position switch and two adjustable knobs for changing flight modes and multiple flap position options. It supports Dual Rate, Trims, Gear, Flap, Gyro Gain Adjust, Flight Mode, Throttle Hold, and Hover Pitch Switches. The transmitter also supports different model types such as Heli, Standard Wing, Elevon, and V-Tail.
Expand the capabilities of your models with optional telemetry receivers and a variety of sensors, typically found in higher-priced transmitters. The FS-i6 provides these advanced features at an affordable price point.
FS-iA6 Specifications:
- No. of Channel: 6
- Frequency Range: 2.4055--2.475GHz
- Band Width Number: 140
- Transmitting Power: ? 20dBm
- RF Receiver Sensitivity: -105dbm
- 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
- Encoding: GFSK
- Antenna Length: 26mm * 2 (dual antenna)
- Input Power: 4.0-6.5V DC
- Dimension: 47 x 26.2 x 15mm
- Weight: 14.9g
- Color: Black
- i-Bus Interface: Yes
- Data Acquisition Interface: Yes
- Model Type: Airplane / Glider / Helicopter

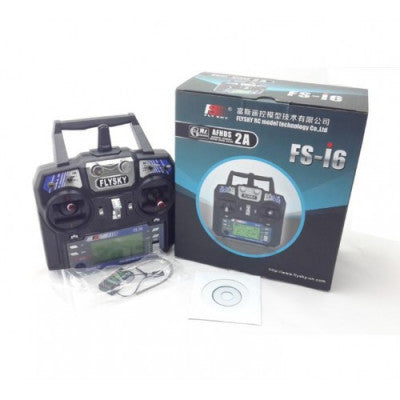

Package Includes:
- 1 x FlySky FS-i6 2.4G 6CH PPM RC Transmitter
- 1 x FS-iA6 receiver
*Images are for illustration only; actual product may vary.
