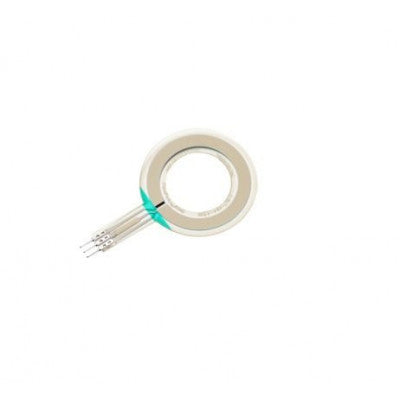

FlexiPot Ring Position Sensor
Circular position sensor with linear output for test and measurement applications.
- Sensor Thickness: 0.203 mm
- Shape: Ring
- Connector: 3-pin Male Square Pin

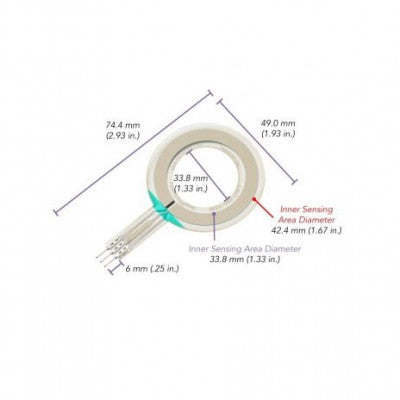

- Outer Sensing Area Diameter: 42.4 mm (1.67 in.)
- Inner Sensing Area Diameter: 33.8 mm (1.33 in.)
- Total Outer Diameter: 49.0 mm
- Substrate: Polyester
- Pin Spacing: 2.54 mm
- Sensor Length: 74.4 mm
- Linearity (Error): < 2%
- Repeatability: < 1% of full scale
- Spatial Resolution: < 2% of full scale
- Operating Temperature: Standard -40°C to 60°C
Features:
- Flexible, ultra-thin, lightweight profile.
- Low power requirements.
- Linear output for precise measurements.
FlexiPot Ring sensors have a circular shape and a 3-pin male connector, designed for use with your own electronics. These sensors are low powered position sensors with a linear output, making them ideal for test and measurement or embedded applications.
Package Includes: 1 x FlexiPot Ring Position Sensor
* Images are for illustration only; actual product may vary.
