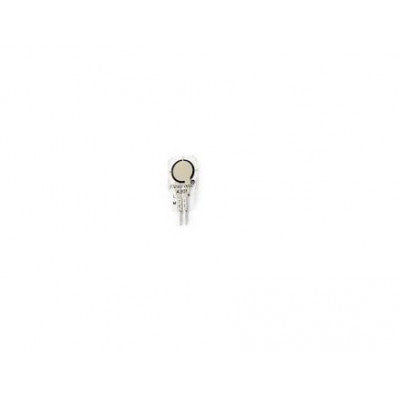

FlexiForce A301-25 Force Sensor
Optimized for high volume manufacturing with a force range of 0-25 lb

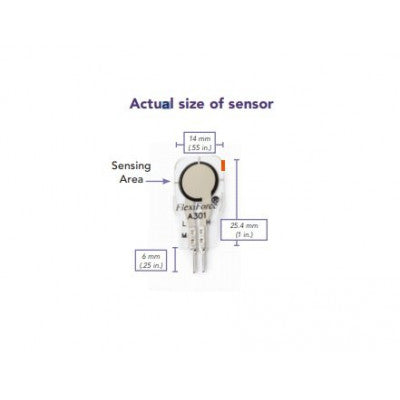

- Thickness: 0.203 mm
- Length: 25.4 mm
- Width: 14 mm
- Sensing Area diameter: 9.53 mm
- Connector: 2-pin Male Square Pin
- Substrate: Polyester
- Pin Spacing: 2.54 mm
Top Features:
- Small size ideal for prototyping
- Enhanced Stability Series for high-temperature environments
- Thin and flexible design
- Easy to integrate
The FlexiForce A301-25 Force Sensor is a versatile sensor suitable for various applications such as Testing and Measurement Equipment, Embedded Electronics, OEM Development Kit, Consumer Electronics, and Multimeter. The sensor's dynamic range can be adjusted by changing the drive voltage and feedback resistor.
Its typical performance includes Linearity (Error) of less than 3% of Full Scale, Repeatability of less than 2.5%, Hysteresis of less than 4.5% of Full Scale, Drift of less than 5% over logarithmic time, and a Response Time of less than 5 seconds. The operating temperature ranges from -40C to 60C (-40F to 140F).
The package includes 1 x FlexiForce A301-25 Force Sensor.
