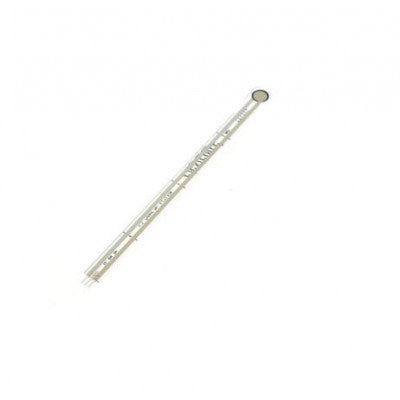

Piezoresistive Force Sensor
A versatile force sensor with a dynamic range modified by voltage adjustments.
- Force Range: 0-25 lb
- Applications: Testing and Measurement Equipment, Embedded Electronics, OEM Development Kit, Consumer Electronics, Multimeter
Features:

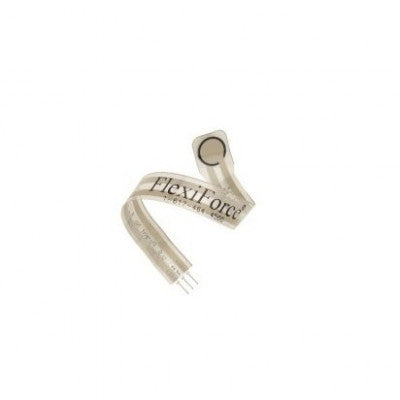

- Thin and flexible
- Easy to use
- Convenient and affordable
The harder you press, the lower the sensor's resistance. Resistance remains constant when flexed, changing only when pressure is applied to the round area at the end of the sensor. The sensor is more linear, with less drift and better rehabilitation compared to other force sensors. It has a wider range and is less sensing area dependent.
Specifications:
- Sensor Length: 190.5 mm
- Standard Force: 111 N (11kg)
- Thickness: 0.203 mm
- Width: 14 mm
- Sensing Area Diameter: 9.53 mm
- Connector: 3-pin Male Square Pin (center pin is inactive)
- Pin Spacing: 2.54 mm
- Substrate: Polyester
*Images are for illustration only; actual product may vary.
