Flexible Coupling OD:25mm x L:32mm Bore:8x8mm (ZRB-2532)
Efficient and precise flexible motor coupling for shaft alignment
- Model: ZRB-2532
- Material: Aluminium
- Maximum Speed (RPM): 20000
- Rated Torque (N-m): 1.5
- Bore Diameter [d1]: 8mm
- Bore Diameter [d2]: 8mm
- Length (mm): 32
- Outer Diameter (OD) (mm): 25
- Screws: 2 x M3
- Catch Shaft Type: Tighten
- Weight (gm): 36
Top Features:
- Corrosion resistance and High Durability
- One piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity

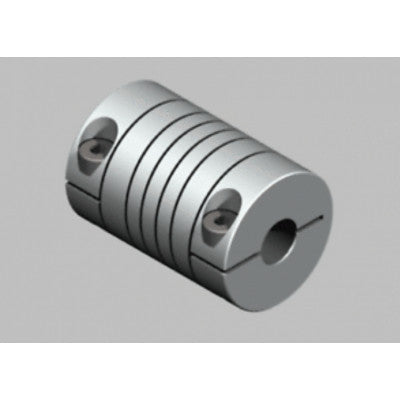

This ZRB-2532 Flexible coupling with an outer diameter of 25mm and a length of 32mm is a machined aluminum coupling. The helical cut in the middle makes it flexible, allowing it to fit two shafts even if they are not perfectly co-linear, reducing binding effects. It behaves like a spring in the X, Y, and Z linear axes but not in the rotational axis, making it suitable for precision CNC work.
A coupling is a device that transmits power and torque, protecting shafts against misalignment, shock loads, shaft expansion, and vibrations. By selecting, installing, and maintaining couplings carefully, you can save on maintenance costs and downtime. The first bore diameter is 8mm, and the second bore diameter is also 8mm.
*Images are for illustration only; actual product may vary.
