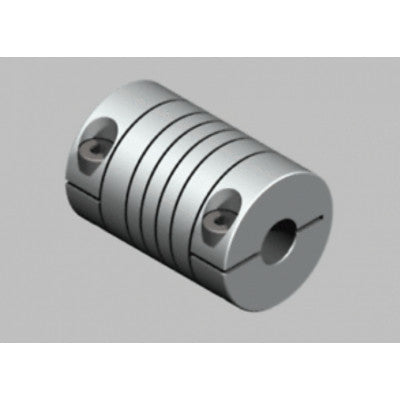

Flexible Coupling OD:25mm x L:32mm Bore:6x8mm (ZRB-2532)
Efficient and precise flexible motor coupling for shaft alignment
- Model: ZRB-2532
- Material: Aluminium
- Maximum Speed (RPM): 20000
- Rated Torque (N-m): 1.5
- Bore Diameter [d1] (mm): 6
- Bore Diameter [d2] (mm): 8
- Outer Diameter (OD) (mm): 25
- Length (mm): 32
- Catch Shaft Type: Tighten
- Screws: 2 x M3
- Weight (gm): 35
Top Features:
- Corrosion resistance and High Durability
- One piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity
This ZRB-2532 Flexible coupling with an outer diameter of 25mm and a length of 32mm is a machined aluminum coupling. The helical cut in the middle makes it flexible, allowing it to fit two shafts even if they are not perfectly co-linear, reducing binding effects. It behaves like a spring in the X, Y, and Z linear axes but not in the rotational axis, making it suitable for precision CNC work.
A coupling is a device that transmits power and torque, protecting shafts against misalignment, shock loads, shaft expansion, and vibrations. By careful selection, installation, and maintenance of couplings, substantial savings are possible in reduced maintenance costs and downtime.
The screws that clamp the shafts should be tightened adequately but not excessively to avoid damaging the shafts. This coupling is known by various names like Beam coupling, helical coupling, and Flexible coupling.
First bore diameter is 6mm, and the second bore diameter is 8mm.
By careful selection, installation, and maintenance of couplings, substantial savings are possible in reduced maintenance costs and downtime.
Package Includes:
- 1 x Flexible coupling OD:25mm x L:32mm Bore:6x8mm (ZRB-2532)
* Images are for illustration only; actual product may vary.
