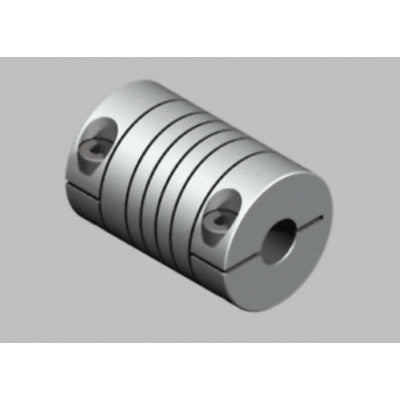

Flexible Coupling OD:25mm x L:32mm Bore:6x6mm (ZRB-2532)
Efficient and precise flexible motor coupling for shaft alignment
- Model: ZRB-2532
- Material: Aluminium
- Bore Diameter [d1]: 6mm
- Bore Diameter [d2]: 6mm
- Maximum Speed(RPM): 20000
- Outer Diameter (OD): 25mm
- Length: 32mm
- Screws: 2 x M3
- Catch Shaft Type: Tighten
- Weight(gm): 36
Top Features:
- Corrosion resistance and High Durability
- One piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity
This ZRB-2532 Flexible coupling with an outer diameter of 25mm and a length of 32mm is a machined aluminum coupling. The spiral cut in the middle makes it flexible, allowing it to fit two shafts even if they are not perfectly co-linear, reducing binding effects. Known as Beam coupling, helical coupling, or Flexible coupling, it efficiently eliminates misalignment and minimizes backlash.
The helical cut design provides spring-like behavior in the X, Y, and Z linear axes, making it suitable for precision CNC work. Couplings like these transmit power and torque, protecting shafts from misalignment, shock loads, and vibrations. With proper selection, installation, and maintenance, they can lead to reduced maintenance costs and downtime.
The first bore diameter is 6mm, and the second bore diameter is also 6mm.
*Images are for illustration only; actual product may vary.
