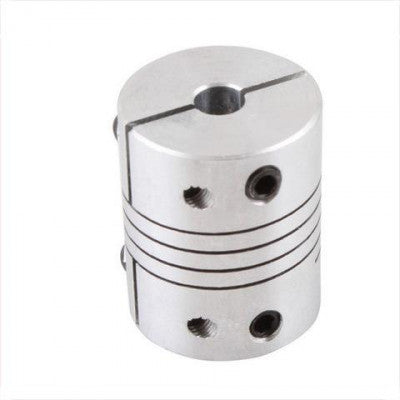

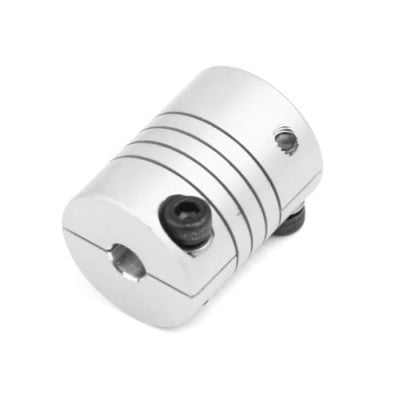

Flexible Coupling OD: 20mm x L: 25mm Bore: 5x5mm
Efficient and precise flexible motor coupling for shaft alignment
- Material: Aluminium
- Maximum Speed (RPM): 20000
- Rated Torque (N-m): 1
- Bore Diameter [d1]: 5mm
- Bore Diameter [d2]: 5mm
- Outer Diameter (OD): 20mm
- Length: 25mm
- Screws: 2 x M4
- Catch Shaft Type: Tighten
- Weight: 20gm
Top Features:
- Corrosion resistance and High Durability
- One piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity
This flexible type motor coupling efficiently connects your driving shaft with the driven shaft, eliminating misalignment to a great extent. The machined aluminum coupling with an outer diameter of 20mm and a length of 25mm ensures minimum backlash. The spiral cut in the middle allows flexibility to fit two non-co-linear shafts, reducing binding effects.
The helical cut design provides spring-like behavior in linear axes, suitable for precision CNC work. Couplings like these protect shafts from misalignment, shock loads, and vibrations. They transmit power and torque without allowing disconnection during operation. The coupling's torque limiting feature prevents damage when torque limits are exceeded.
By selecting, installing, and maintaining couplings carefully, you can save on maintenance costs and downtime. The first bore diameter is 5mm, and the second bore diameter is also 5mm.
*Images are for illustration only; actual product may vary.
