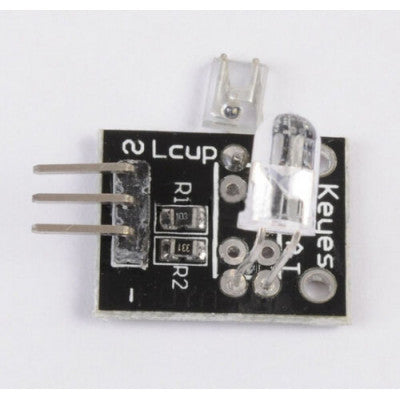

Heartbeat Sensor
Compact heartbeat sensor module compatible with Arduino.
- Module: Heartbeat Sensor
- Compatible with: Arduino
- Size: 1.9 x 1.5cm
- Bright Infrared LED and Phototransistor: Detects pulse
- Red LED Indicator: Flashes with each pulse
- High Resistance Resistor R1: Allows sensitive phototransistor readings
- Shielded Design: Minimizes stray light interference
This project utilizes a bright infrared (IR) LED and a phototransistor to detect the pulse of the finger. A red LED flashes with each pulse. The pulse monitor detects the flux emitted when the blood pressure pulse passes through the finger, resulting in a slight change in the phototransistor's resistance. The module is equipped with a very high resistance resistor R1 to ensure the phototransistor's sensitivity is sufficient. The resistance can be adjusted through experimentation to achieve the best results, with a focus on preventing stray light from entering the phototransistor. This is crucial for accurate readings, especially in environments with fluctuating lighting conditions such as home settings which are primarily based on 50HZ or 60HZ frequency.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
