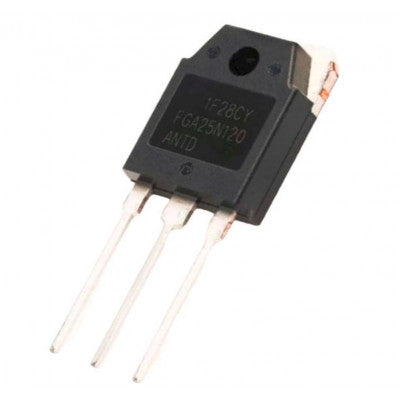

FGA25N120ANTD IGBT - 1200V 25A NPT Trench IGBT
Superior conduction and switching performances, high avalanche ruggedness, and easy parallel operation
- VCES: 1200V
- VGES: ±20V
- IC @ 25°C: 50A
- IC @ 100°C: 25A
- ICM Pulsed: 90A
- IFDiode Continuous Forward Current @ 25°C: 50A
- IFDiode Continuous Forward Current @ 100°C: 25A
- IFMDiode Maximum Forward Current: 150A
- PD @ 25°C: 312W
- PD @ 100°C: 125W
- TJ Operating Junction Temperature: -55 to +150°C
- Tstg Storage Temperature Range: 55 to +150°C
- TL Maximum Lead Temp. for soldering: 300°C
Features:
- NPT Trench Technology, Positive Temperature Coefficient
- Low Saturation Voltage: VCE(sat), typ = 2.0 V @ IC = 25 A and TC = 25?C
- Low Switching Loss: Eoff, typ = 0.96 mJ @ IC = 25 A and TC = 25?C
- Extremely Enhanced Avalanche Capability
Applications:
- Induction Heating
- Microwave Oven
Related Document: FGA25N120ANTD IGBT Data Sheet
