P-Channel 2.5V Specified MOSFET
An advanced MOSFET optimized for battery power management applications.
- Drain-Source Voltage: -20V
- Gate-Source Voltage: ±8V
- Drain Current – Continuous: -1.6A
- Drain Current – Pulsed: -5A
- Maximum Power Dissipation: 0.5-0.46W
- Operating and Storage Junction Temperature Range: -55 to +150°C

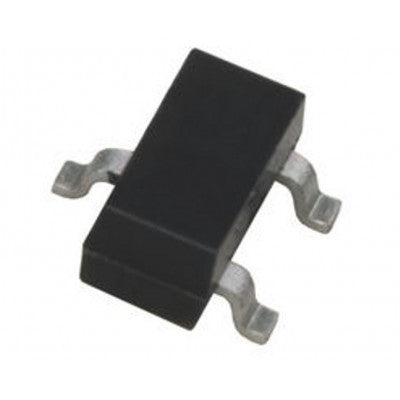

- Package Includes: 1 x FDN338P MOSFET - (SMD SOT-23 Package) - 20V 1.6A P-Channel MOSFET
Features:
- 1.6 A, -20 V
- RDS(ON) = 115 m? @ VGS = -4.5V
- RDS(ON) = 155 m? @ VGS = -2.5V
- Fast Switching Speed
This P-Channel 2.5V specified MOSFET utilizes advanced low voltage Power Trench process, making it ideal for battery power management applications. The device offers high performance Trench Technology for extremely low RDS(ON) and features a Super SOT-23 package that provides low RDS(ON) and 30% higher power handling capability than SOT23 in the same footprint. Additionally, these devices are Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.
Applications:
- Battery management
- Load switch
- Battery protection
