P-Channel 1.8V Specified MOSFET
Advanced low voltage Power Trench process MOSFET for battery power management.
- Drain-Source Voltage: -20V
- Gate-Source Voltage: ±8V
- Drain Current – Continuous: -2.4A
- Drain Current – Pulsed: -10A
- Maximum Power Dissipation: 0.5-0.46W
- Operating and Storage Junction Temperature Range: -55 to +150°C

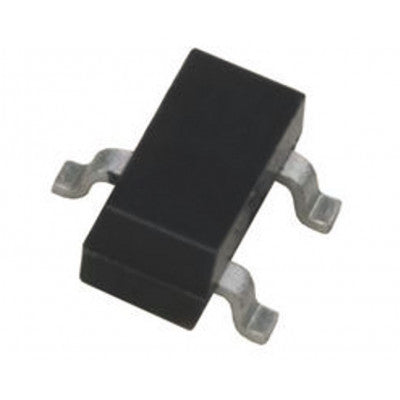

- Package Includes: 1 x FDN304P MOSFET - (SMD SOT-23 Package) - 20V 2.4A P-Channel MOSFET
Features:
- 2.4 A, -20 V
- RDS(ON) = 52 m @ VGS = -4.5 V
- RDS(ON) = 70 m @ VGS = -2.5 V
- RDS(ON) = 100 m @ VGS = -1.8 V
This P-Channel 1.8V specified MOSFET utilizes advanced low voltage Power Trench process, making it ideal for battery power management applications. It offers fast switching speed and high performance Trench Technology for extremely low RDS(ON). The Super SOT-23 provides low RDS(ON) and 30% higher power handling capability than SOT23 in the same footprint. Additionally, these devices are Pb-Free, Halogen Free/BFR Free, and are RoHS Compliant.
Applications:
- Battery management
- Load switch
- Battery protection
