F2415XT-1WR2 Series
Designed for distributed power supply systems with high input to output isolation voltage.
- Input Voltage Range: 21.6-26.4VDC
- Nominal Voltage: 24VDC
- Output Voltage: 15V
- Output Current: 67/7mA
- Wattage: 1W
- Isolation: 3kVDC
- Package: SMD
Features:
- Continuous short-circuit protection
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 80%
- SMD package
The F2415XT-1WR2 series is ideal for pure digital circuits, low frequency analog circuits, noise and interference cancelling circuits, relay-driven circuits, and data switching circuits. It is suitable for applications where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and a high input to output isolation voltage of up to 3000VDC is necessary. The module also meets the requirements for ripple & noise or tight output regulation.
Typical application areas include pre-stage interference isolation, ground interference cancellation, pure digital circuits, voltage isolation conversion, general low-frequency analog circuits, and relay drive circuits.
Package Includes:

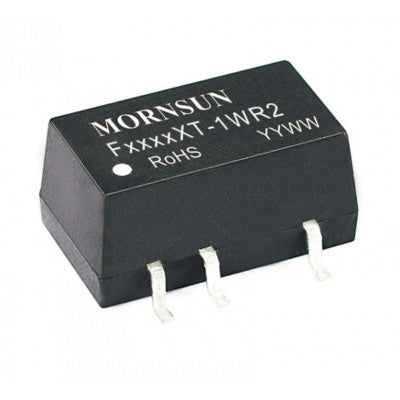

- 1 x F2415XT-1WR2 Mornsun 24V to 15V DC-DC Converter 1W Power Supply Module - SMD Package
Images are for illustration only; actual product may vary.
