F2405XT-1WR2 Series
Designed for distributed power supply systems with high input to output isolation voltage.
- I/p Voltage range: 21.6-26.4vdc
- Nominal voltage: 24Vdc
- O/p voltage: 5V
- O/p current: 200/20(mA)
- Wattage: 1W
- Isolation: 3kVdc
- Package: SMD
Features:
- Continuous short-circuit protection
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 80%
- I/O isolation test voltage 3k VDC
The F2405XT-1WR2 series is designed for use in distributed power supply systems and is especially suitable for applications such as pure digital circuits, low-frequency analog circuits, noise and interference canceling circuits, relay-driven circuits, and data switching circuits. It is ideal where the input power supply voltage is relatively stable with a variation of ±10%Vin or less and a high input to output isolation voltage of up to 3000VDC is necessary. The module also caters to applications where the requirement for ripple & noise or tight output regulation is not as strict.
Typical application areas include pre-stage interference isolation, ground interference cancellation, pure digital circuits, voltage isolation conversion, general low-frequency analog circuits, and relay drive circuits.
Package Includes:

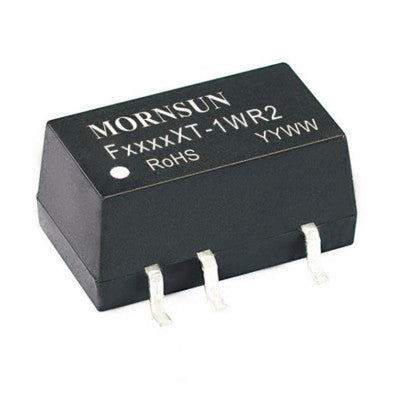

- 1 x F2405XT-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - SMD Package
Images are for illustration only; actual product may vary.
