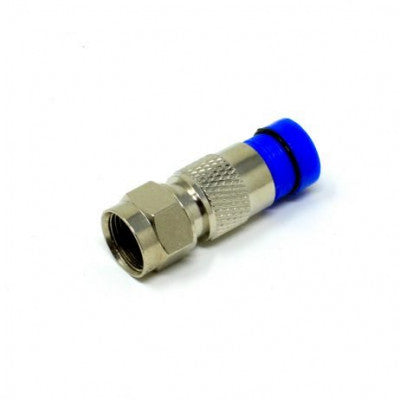

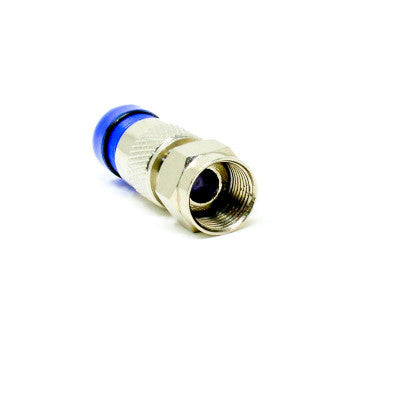

Industry-Standard F Connector RG6 Male Type Connector
Designed for terminating 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Zinc Alloy
- Body Plating: Nickel Plating
- Impedance: 75 ohms
- Shield Termination: Compression
Top Features:
- Compact design for space-saving installation
- Quick connect and disconnect coupling
These connectors are ideal for Consumer Electronics like Satellite Boxes, DTH set-top boxes, and Antennas, as well as Telecommunications applications such as CATV and CATV Networks.
Specifications:
- Spec name: Impedance 75 ohm
- Spec name: Frequency Range: 0~3Ghz
- Spec name: VSWR: Straight type 1.2max / R/A type 1.3max
- Spec name: Withstanding Voltage: 500 V rms
- Spec name: Working Voltage: 170 V rms
- Spec name: Center Contact Resistance 10 m
- Spec name: Outer Contact Resistance 5 m
- Spec name: Insulation Resistance 1000 m
- Spec name: RF Leakage -100dB min @1GHz

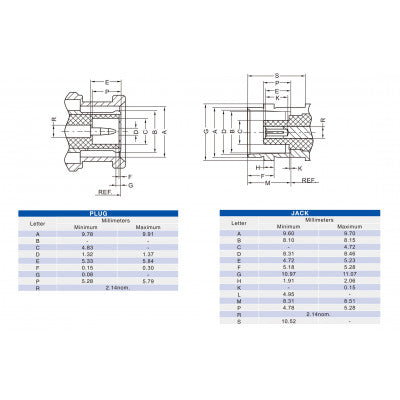

Mechanical Characteristics:
- Spec name: Coupling: 3/8-32 thread
- Spec name: Cable Retention: 20 lbs min.
- Spec name: Durability (mating): 500 cycles
Environmental Characteristics:
- Spec name: Temperature Range: -40C ~ +60C
*Images are for illustration only; actual product may vary.
