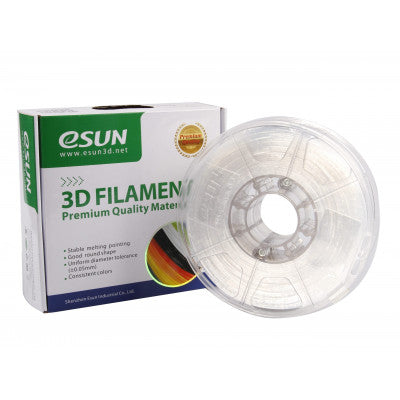

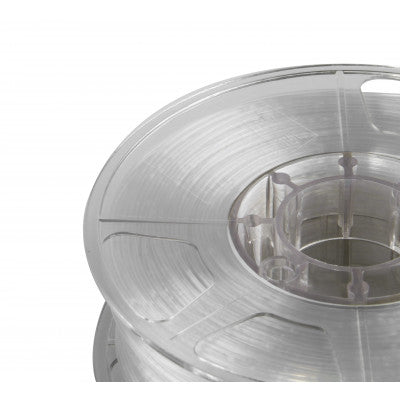

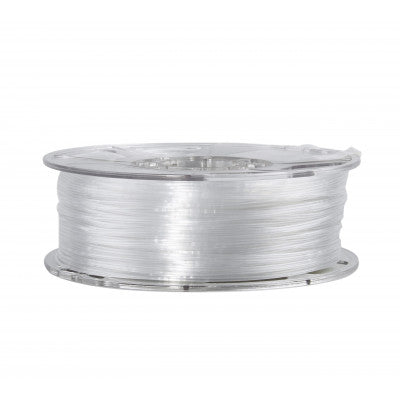

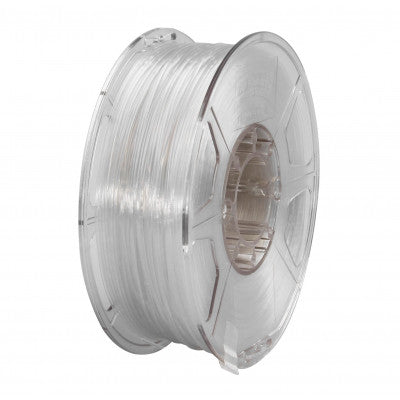

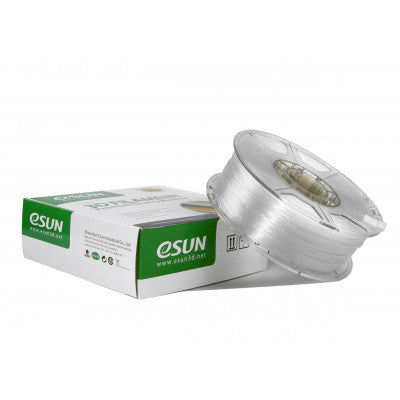

eSun ePC 1.75mm 3D Printing Filament 0.5kg Natural
Flame retardant polycarbonate filament for heat resistance and low flammability.
- Brand: eSun
- Material: ePC
- Filament Diameter (mm): 1.75
- Filament Weight and Length: 0.5Kg/ 165 Meter
- Heating Bed Temperature (C): 110
- Density (g/cm): 1.2
- Melt Flow Index (g/10min): 45 (300C/1.2kg)
- Dimensional Accuracy (mm): 0.1
Top Features:
- Environmentally friendly
- Smooth printing, odorless
- High Strength, High Rigidity, Good Toughness
- Wear-Resisting, Fitting to 3D print industrial parts
eSun ePC 1.75mm 3D Printing Filament 0.5kg Natural is a flame retardant polycarbonate filament suitable for applications requiring heat resistance and low flammability. It is highly transparent, flame retardant to UL94: V-2 levels, and prints at temperatures of 235-260 C. The filament is environmentally friendly, non-toxic, and easy to process. It has a shrinkage rate similar to ABS and offers good thermostability and high distortion temperature.
Print Settings:
Hot end: 230C
First Layer: 230C
Print Base temperature: 80C
Print Speed: 30-60 mm/s
Move Speed: 90-150mm/s
Nozzle Type: Hardened/Disposable
Nozzle Diameter: >0.5mm (0.6mm recommended)
Heated bed: 80C (Elmers purple glue stick recommended for adhesion)
Min layer time: 5 seconds
Stainless steel nozzle is needed.
Package Includes:
1 x eSun ePC 1.75mm 3D Printing Filament 0.5kg Natural
Specifications:
- Roundness Accuracy (mm): 0.5
-
Spool Size (mm):
Hub Diameter: 32
Outer Diameter: 200
Width Diameter: 60 - Bending Strength (MPa): 80
- Elongation at Break (%): 160
- Flexural Modulus (MPa): 2333
- Print Temperature (C): 235-260
- Tensile Strength (MPa): 57
- Distortion Temp (C,0.45MPa): 93
- Impact Strength (kJ/m): 48
- Color: Natural
-
Spool Dimensions:
Inner diameter: 50 mm
Outer diameter: 200 mm
Weight of spool: 300 g
Width: 65 mm
*Images are for illustration only; actual product may vary.
