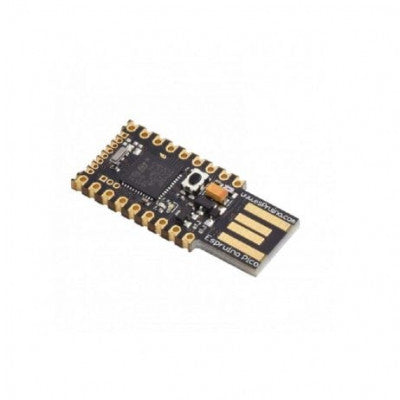

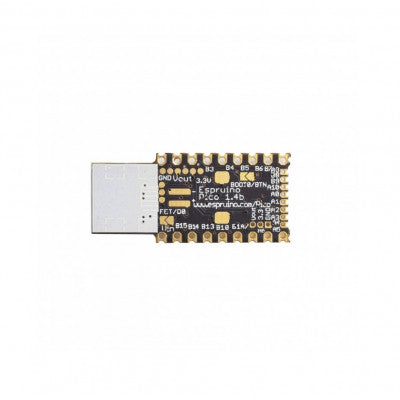

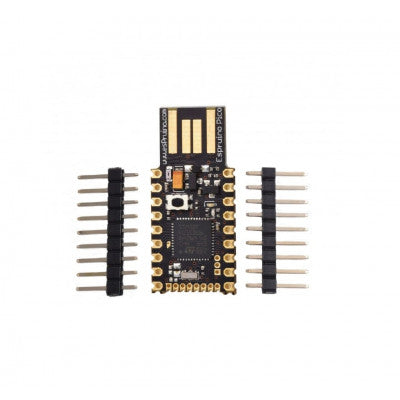

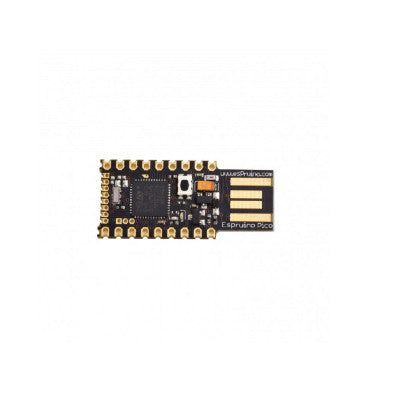

Espruino Pico
A tiny microcontroller board that runs JavaScript, making electronics control easier.
- Spec name: 33mm x 15mm (1.3 x 0.6 inch)
- Spec name: 22 GPIO pins: 9 Analogs inputs, 21 PWM, 2 Serial, 3 SPI, 3 I2C
- Spec name: All GPIO is 5 volt tolerant (Arduino compatible)
- Spec name: 2 rows of 9 0.1 pins, with a third 0.05 row of 8 pins on the end
- Spec name: On-board USB Type A connector
- Spec name: Two on-board LEDs and one button
- Spec name: Current draw in sleep: < 0.05mA over 2.5 years on a 2500mAh battery
- Spec name: On-board FET can be used to drive high-current outputs
Top Features:
- Small size: 33mm x 15mm
- 22 GPIO pins
- 5V tolerant GPIO
- On-board USB connector
Espruino Pico is a versatile microcontroller board that allows you to program it with a serial terminal program or an IDE in the Chrome Web browser. It features a syntax-highlighted editor and a graphical programming language, making it easy to control electronics in the real world. With its STM32F401CDU6 CPU ARM Cortex M4, 384kb flash, and 96kb RAM, the Espruino Pico offers great performance. The on-board 3.3v 250mA voltage regulator accepts voltages from 3.5v to 16v, providing flexibility in power supply options.
- Spec name: 33mm x 15mm (1.3 x 0.6 inch)
- Spec name: 22 GPIO pins: 9 Analogs inputs, 21 PWM, 2 Serial, 3 SPI, 3 I2C
- Spec name: STM32F401CDU6 CPU ARM Cortex M4, 384kb flash, 96kb RAM
- Spec name: On-board 3.3v 250mA voltage regulator, accepts voltages from 3.5v to 16v
Images are for illustration only; actual product may vary.
