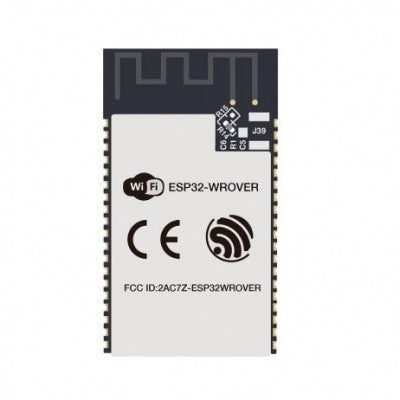

Espressif ESP32-WROVER-IPEX Wireless Module
A powerful, generic WiFi-BT-BLE MCU module for a wide variety of applications.
- Kind of connector: IPEX Antenna
- Wifi: 802.11 b/g/n (802.11n up to 150 Mbps)
- Frequency range: 2412 ~ 2484 MHz
- Bluetooth: v4.2 BR/EDR and BLE
- Radio: NZIF receiver with 97 dBm sensitivity, Class-1, class-2, and class-3 transmitter, AFH
- Audio: CVSD and SBC
- On-chip sensor: Hall sensor
- Integrated crystal: 40 MHz crystal
- Integrated SPI flash: 16 MB
- Integrated PSRAM: 128 MB
- Operating voltage/Power supply: 3.0 V ~ 3.6 V
- Minimum current: 500 mA
- Operating temperature range: 40°C ~ 85°C
- Dimensions: 18 x 31.5 x 3.3 mm
- Moisture sensitivity level (MSL): Level 3
Top Features:
- Adjustable clock frequency from 80 MHz to 240 MHz
- +19.5 dBm output power for good physical range
- Support for Bluetooth Low Energy profiles
- Low sleep current suitable for battery-powered devices
The ESP32-WROVER-IPEX Wireless Module is a versatile solution for IoT applications, offering a range of features including capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C. It is ideal for applications such as low-power sensor networks, voice encoding, music streaming, and more.
The ESP32-D0WD chip at the core of the ESP32-WROVER-IPEX features two CPU cores that can be individually controlled, with a CPU clock frequency adjustable from 80MHz to 240MHz. The module also includes a 16MB external SPI flash and an additional 128MB SPI Pseudo static RAM (PSRAM).
Designed for fast on-line programming, the ESP32-WROVER-IPEX module provides SDK Firmware and open-source toolchains based on GCC for development support. It is suitable for a wide range of applications including IoT sensor hubs, video streaming, home automation, and mesh network applications.
The ESP32 is a single-chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra-low-power 40 nm technology. It offers excellent power performance, RF performance, robustness, and reliability for various applications and power profiles. With integrated features such as the antenna switch, RF balun, power amplifier, and more, the ESP32 provides a highly integrated solution for Wi-Fi + Bluetooth applications.
With its compact design and minimal PCB area occupation, the ESP32 is suitable for mobile, wearable electronics, and IoT applications. It includes features such as fine resolution clock gating, power modes, and dynamic power scaling for efficient power management.
* Images are for illustration only; actual product may vary.
