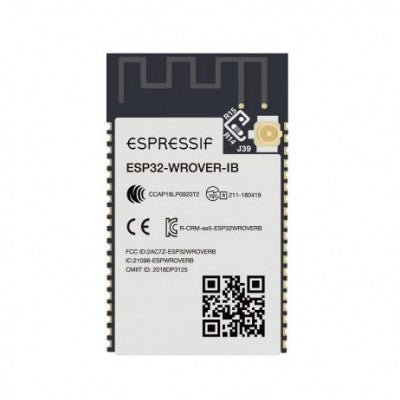

Espressif ESP32-WROVER-IB Wireless Module
A powerful WiFi-BT-BLE MCU module for a wide range of applications
- Wifi: 802.11 b/g/n (802.11n up to 150 Mbps)
- Frequency range: 2412 ~ 2484 MHz
- Bluetooth: v4.2 BR/EDR and BLE
- Radio: NZIF receiver with 97 dBm sensitivity, Class-1, class-2, and class-3 transmitter, AFH
- Audio: CVSD and SBC
- On-chip sensor: Hall sensor
- Integrated crystal: 40 MHz crystal
- Integrated SPI flash: 4 MB
- Integrated PSRAM: 32 MB
- Operating voltage/Power supply: 3.0 V ~ 3.6 V
- Minimum current: 500 mA
- Operating temperature range: 40°C ~ 85°C
- Dimensions: 18 x 31.5 x 3.3 mm
- Moisture sensitivity level (MSL): Level 3
Top Features:
- Adjustable clock frequency from 80 MHz to 240 MHz
- +19.5 dBm output power for good physical range
- Supports Classic Bluetooth and Bluetooth Low Energy profiles
- Sleep current less than 5 A for battery-powered applications
The Espressif ESP32-WROVER-IB Wireless Module is a versatile solution designed for various IoT applications. It features a 4MB external SPI flash and 32MB SPI PSRAM, making it suitable for tasks like voice encoding, music streaming, and MP3 decoding. The ESP32-D0WD chip at its core offers two CPU cores with adjustable clock frequencies. With a rich set of peripherals including capacitive touch sensors, Hall sensors, and more, this module is ideal for makers, hardware engineers, and software engineers.
The ESP32-WROVER-IB provides SDK Firmware for online programming and open-source toolchains for development support. It is optimized for power performance, RF performance, and reliability, making it a top choice for IoT applications. With integrated features like antenna switch, power amplifier, and filters, this module offers a compact solution for Wi-Fi and Bluetooth applications.
Whether you're working on low-power sensor networks or high-demanding tasks, the ESP32-WROVER-IB Wireless Module is a reliable and efficient choice for your projects.
