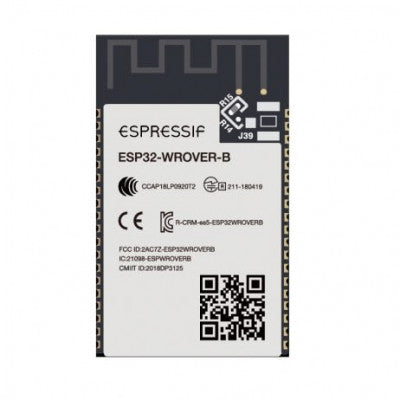

Espressif ESP32-WROVER-B Wireless Module
A powerful WiFi-BT-BLE MCU module for a wide range of applications.
- Wifi: 802.11 b/g/n (802.11n up to 150 Mbps)
- Bluetooth: v4.2 BR/EDR and BLE
- Radio: NZIF receiver with 97 dBm sensitivity, Class-1, class-2, and class-3 transmitter, AFH
- Audio: CVSD and SBC
- On-chip sensor: Hall sensor
- Integrated crystal: 40 MHz crystal
- Integrated SPI flash: 8 MB
- Integrated PSRAM: 64 MB
- Operating voltage/Power supply: 3.0 V ~ 3.6 V
- Minimum current: 500 mA
- Operating temperature range: 40°C ~ 85°C
- Dimensions: 18 x 31.5 x 3.3 mm
- Moisture sensitivity level (MSL): Level 3
Top Features:
- Adjustable clock frequency from 80 MHz to 240 MHz
- +19.5 dBm output power for good range
- Support for Bluetooth Classic and Low Energy
- Low sleep current, suitable for battery-powered devices
The Espressif ESP32-WROVER-B Wireless Module is a versatile solution designed for various IoT applications. It features an 8MB external SPI flash and 64MB SPI PSRAM, making it suitable for tasks like voice encoding, music streaming, and MP3 decoding. The module is powered by the ESP32-D0WD chip, offering dual CPU cores with adjustable clock frequencies.
With a rich set of peripherals including touch sensors, SD card interface, Ethernet, and more, the ESP32-WROVER-B is ideal for applications such as sensor networks, video streaming, home automation, and mesh networks. It provides SDK Firmware for easy programming and supports open-source toolchains for development.
Designed with TSMC ultra-low-power technology, the ESP32 offers excellent power and RF performance, making it suitable for mobile, wearable electronics, and IoT applications. Its integrated design minimizes the need for external components, resulting in a compact PCB layout.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
