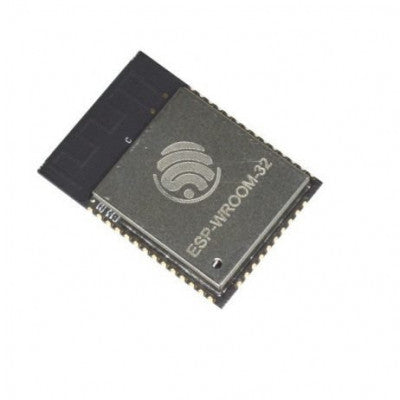

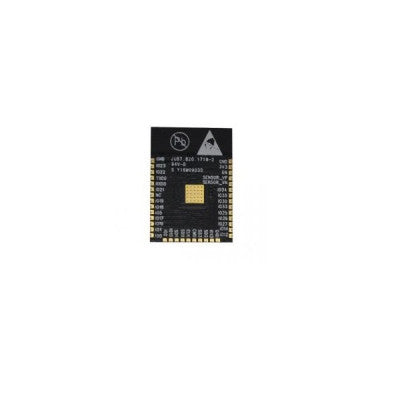

Espressif ESP32-WROOM-32D 4M 32Mbit Flash WiFi Bluetooth Module
Powerful Wi-Fi+BT+BLE MCU module for various applications
- Spec name: ESP32-WROOM-32D
- Flash: 4M
- Memory: 32Mbit
Features:
- Two low-power Xtensa 32-bit LX6 microprocessors
- 448 KBytes ROM for booting and core functions
- 520 KBytes on-chip SRAM
- 8 KBytes SRAM in RTC SLOW
ESP32-WROOM-32U is different from ESP32-WROOM-32D in that ESP32-WROOM-32U integrates a U.FL connector. For detailed information on the U.FL connector please see Chapter 10 in the datasheet attached. Note that the information in this data sheet is applicable to both modules. Any differences between them will be clearly specified in the course of the document in the attachment.
Note: For All Technical details go through the datasheet in the attachment.
- WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
- Bluetooth: v4.2 BR/EDR and BLE specification
- Security: WPA/WPA2/WPA2-Enterprise/WPS
- Interfaces: SD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
- Operating temperature: -40 to +85°C
- Operating voltage: 2.2-3.6V
- Consumption: 80 mA typ
- Dimensions: 18 mm x 20 mm x 3 mm
Package Includes: 1 x Espressif ESP32-WROOM-32D 4M 32Mbit Flash WiFi Bluetooth Module
* Images are for illustration only; actual product may vary.
