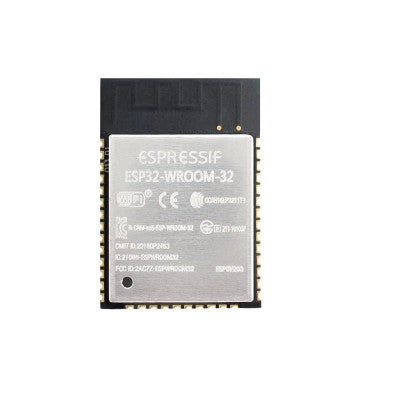

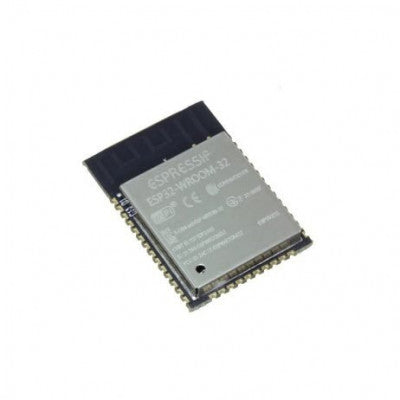

Espressif Systems ESP32-WROOM-32 MCU Modules
Powerful Wi-Fi/BT/BLE MCU modules for a wide range of applications
- Spec name: ESP32-D0WD chip
- Spec name: Two CPU cores, adjustable frequency (80MHz to 240MHz)
- Spec name: Rich set of peripherals including touch sensors, Hall sensors, and more
- Spec name: SDK Firmware for fast online programming
- Spec name: Designed for low power IoT sensor hub, video streaming, home automation, and more
- Spec name: Single chip 2.4 GHz Wi-Fi and Bluetooth combo chip
- Spec name: TSMC ultra-low-power 40 nm technology
- Spec name: Integrated antenna switch, power amplifier, and more
- Spec name: Designed for mobile, wearable electronics, and IoT applications
Top Features:
- Two low-power Xtensa 32-bit LX6 microprocessors
- Supports multiple external QSPI flash and SRAM chips
- 32Mbits 3.3V SPI flash
- Advanced power-management technologies
The ESP32-WROOM-32 MCU Modules are designed for a variety of applications, from low-power sensor networks to high-demand tasks like voice encoding and music streaming. With its rich set of peripherals and SDK Firmware support, it is ideal for IoT projects and more.
The ESP32 integrates Wi-Fi, Bluetooth, and various interfaces in a compact design, making it suitable for mobile and wearable electronics. It offers advanced power management and low power consumption for efficient operation.
Specifications:
- 802.11 b/g/n: 802.11n up to 150Mbps Wi-Fi protocol
- Bluetooth: v4.2 BR/EDR and BLE
- Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR module
- Hall sensor
- Operating voltage: 2.7V to 3.6V
- Operating current: 80mA average
- Operating temperature: -40C to 85C
Images are for illustration only; actual product may vary.
