Espressif Systems ESP32-WROOM-32 MCU Modules
Powerful Wi-Fi/BT/BLE MCU modules for a wide range of applications
- Spec name: ESP32-D0WD chip
- Spec name: Two CPU cores, adjustable frequency (80MHz to 240MHz)
- Spec name: Rich set of peripherals including touch sensors, Hall sensors, and more
- Spec name: SDK Firmware for fast online programming
- Spec name: TSMC ultra-low-power 40 nm technology
- Spec name: Designed for IoT applications with optimized power performance
Top Features:
- Two low-power Xtensa 32-bit LX6 microprocessors
- Supports multiple external QSPI flash and SRAM chips
- 32Mbits 3.3V SPI flash
- Advanced power-management technologies
The ESP32-WROOM-32 MCU Modules are designed for a variety of applications, from low-power sensor networks to demanding tasks like voice encoding and music streaming. With features like dual CPU cores, rich peripherals, and SDK Firmware support, these modules are ideal for IoT projects and more.
The ESP32 integrates Wi-Fi, Bluetooth, and a range of interfaces like SD card, UART, and I2C. It offers advanced power-management technologies and operates on an average current of 80mA. With an operating temperature range of -40C to 85C, it is suitable for diverse environments.

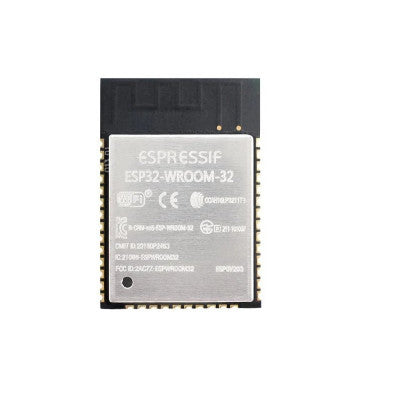

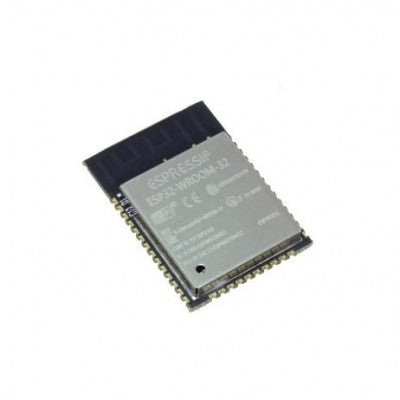

Package Includes: 1 x Espressif ESP32-WROOM-32 16M 128Mbit Flash WiFi Bluetooth Module
* Images are for illustration only; actual product may vary.
