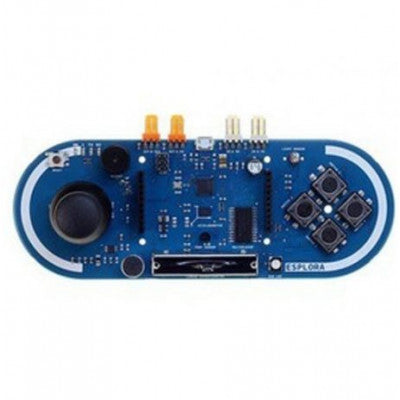

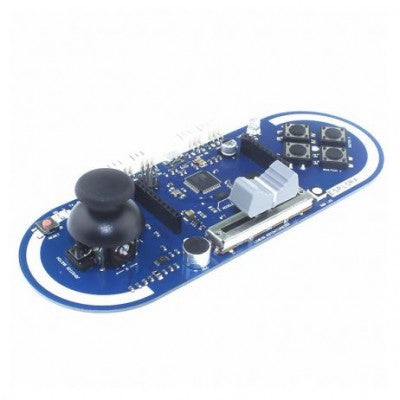

ESPLORA Joystick Photosensitive Sensor Board
A microcontroller board derived from the Leonardo with built-in sensors for easy interaction.
- Microcontroller: ATmega32U4
- Operating Voltage (VDC): 5
- Flash Memory: 32 KB
- SRAM (KB): 2.5
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Length (mm): 164
- Width (mm): 64
- Height (mm): 32
- Weight (gm): 54
Top Features:
- Onboard sound and light outputs

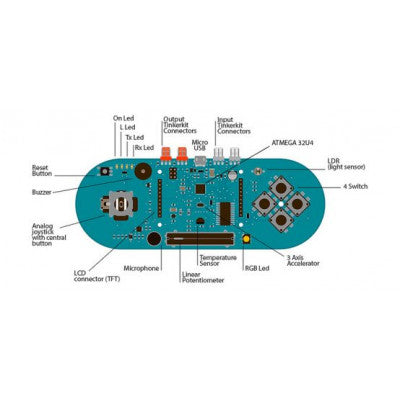

- Joystick, slider, temperature sensor, accelerometer, microphone, light sensor
- Expandable with Tinker-kit connectors and TFT LCD screen socket
- ATmega32U4 AVR microcontroller with 16 MHz crystal oscillator
The ESPLORA Joystick Photosensitive Sensor Board is designed for easy setup without prior electronics knowledge. It features onboard sensors like a joystick, slider, temperature sensor, accelerometer, microphone, and light sensor. With Tinker-kit connectors and a TFT display connector, it offers expandable capabilities.
Communication with a computer is seamless via USB, and the board can function as a mouse or keyboard. Programming is straightforward with the pre-burned boot-loader and dedicated library for sensor readings and outputs. The board also features automatic reset and USB overcurrent protection for added safety.
Package Includes: 1 x ESPLORA Joystick Photosensitive Sensor Board Compatible
