ESP8266/ ESP-12F Module/ Serial WIFI Witty Cloud Development Board + MINI nodeMCU
A compact and affordable Wifi transceiver for Home Automation and IoT applications.
- Microcontroller: ESP8266
- Operating Voltage(V): 3.3
- Flash(Mb): 4
- Length (mm): 30
- Width (mm): 30
- Height (mm): 15
- Package Includes: 1 x ESP8266 / ESP-12F / Serial WIFI Witty cloud Development Board Module, 1 x Mini NODEMCU
Features:
- LDR Light Sensor on board
- WS2812 Led on board
- 3x tactile buttons
- Micro USB connection for power and/or programming
The ESP-12 module is versatile, allowing standalone programming with Arduino IDE or LUA as NodeMCU. It features an LDR and WS2812 LED onboard. The system equips ESP8266 with energy-saving VoIP and adaptive radio bias.
The ESP8266 Serial Wi-Fi Witty Cloud Development Board ESP-12F Module is a cloud intelligent hardware development kit, offering a simple IoT development solution without the need for complex networking knowledge.

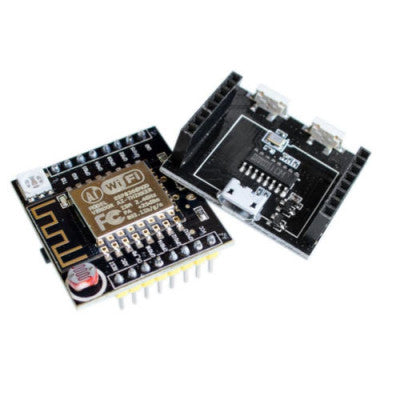

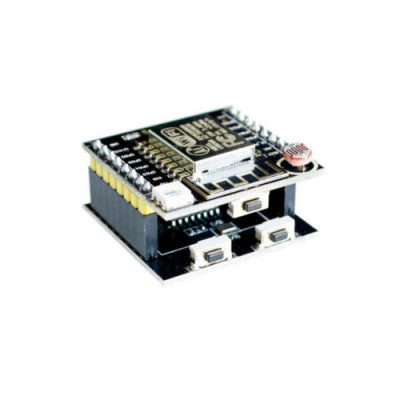

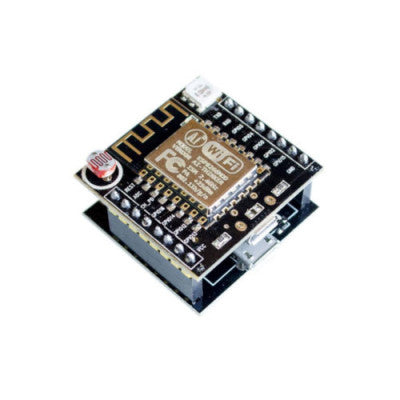

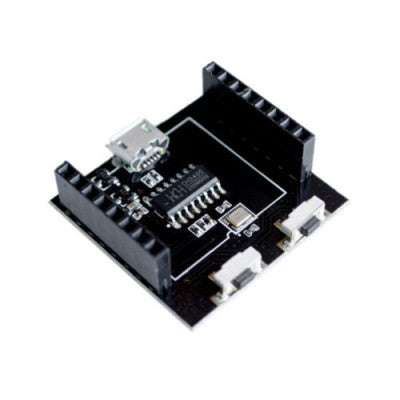

The main board includes an ESP-12F module, RGB LED, LDR, button, micro USB port, and a 3.3V voltage regulator. The lower board mounts the CH340G USB-to-UART module for programming and debugging.
While fully compatible with NodeMCU firmware, the board requires re-flashing before use. It supports various modes including AP, STA, and AP+STA.
Additional information: The ESP8266/ ESP-12F Module operates at 3.3V with 4M flash memory. It measures 30mm x 30mm x 15mm.
* Images are for illustration only; actual product may vary.
