ESP8266 Serial Wireless WIFI Module Adapter Plate
Adapter plate for ESP-07, ESP-08, ESP-12E ESP8266 SMD modules
- PCB Color: White
- PCB Thickness(mm): 1.6
- Length (mm): 31
- Width (mm): 28
- Height (mm): 3
- Weight (gm): 4
Top Features:
- Reserved land-pattern for 3.3V regulator
- Pinouts on top layer in black color
- Compatible with Latest ESP-12F ESP8266 Wifi Module
- Includes a 10K pull-up resistor populated on PCB

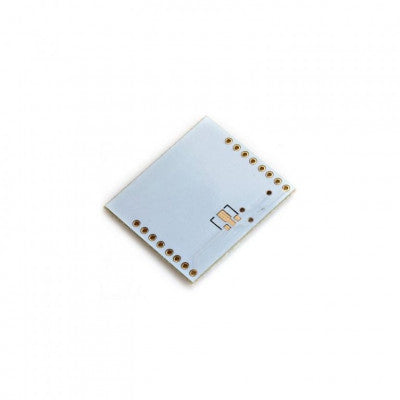

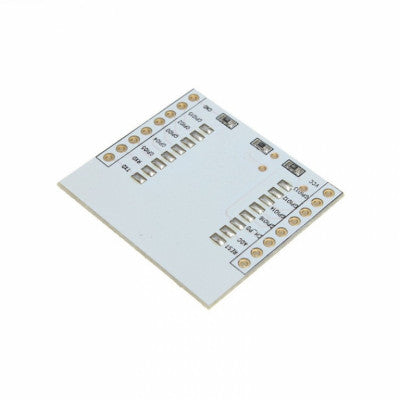

This ESP8266 Serial Wireless WIFI Module Adapter Plate is designed for ESP-07, ESP-08, ESP-12E ESP8266 SMD modules with an unfriendly pin pitch. The adapter PCB allows you to easily solder these modules and use them on breadboards or perforated boards.

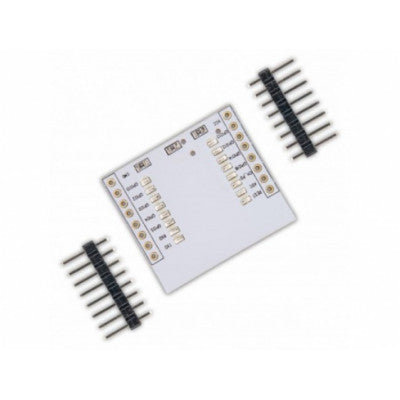

The adapter plate is compatible with ESP07, ESP08, and ESP12 modules, providing clear connection points indicated by headers for easy soldering. It also features a land-pattern for a 3.3V regulator on the bottom layer. To use the 3.3V regulator, you will need to desolder the 0 Ohm jumper resistor R1, allowing the VCC pin to receive 4.5V to 9V power input.
Images are for illustration only; actual product may vary.
