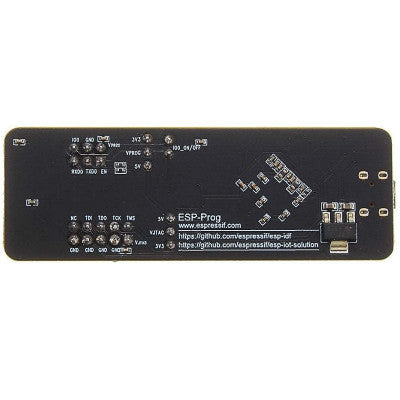

ESP-Prog Development Board
A versatile tool for development and debugging with automatic firmware download and JTAG debugging capabilities.
- Length: 73.4mm
- Breadth: 25.1mm
- Package Includes: 1 x ESP-Prog Development Board JTAG Debug Program Downloader Compatible For ESP32, 2 x JTAG connectors cables
Top Features:
- Easy to use with one USB cable
- Recognizable download and JTAG ports
- Compatible with 2.54mm and 1.27mm pitch packages
- Selectable 5V or 3.3V power supply
ESP-Prog is a development and debugging tool with automatic firmware download, serial communication, and JTAG online debugging capabilities. It is compatible with ESP8266 and ESP32 platforms, offering a seamless experience for users.
For usage, simply connect the ESP-Prog debug board to the computer via USB cable, install the FT2232HL chip driver, select the power supply output voltage, and connect the debug board to the ESP product board for automatic download and JTAG debugging.
ESP-Prog can be easily connected to the user board using the provided cables. The foolproof design ensures correct placement of connectors, and the power supply voltage can be adjusted for compatibility with different user boards.
Automatic download and JTAG debugging for ESP32 product boards can be achieved using official software tools or scripts, making development and testing processes efficient and convenient.
* Images are for illustration only; actual product may vary.
