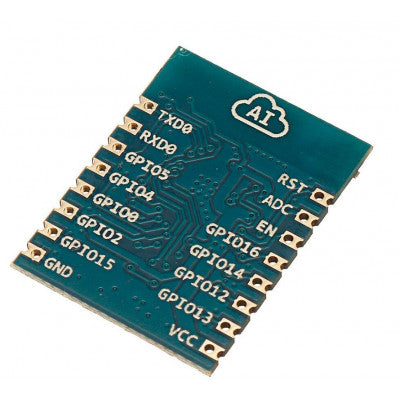

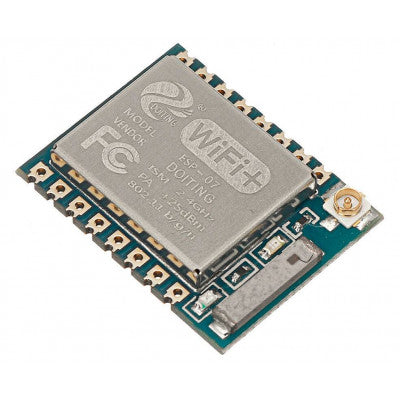

ESP 8266 ESP-07 WIFI Module
WIFI serial transceiver module with ESP8266 SoC for smart home projects.
- Model: ESP-07
- Antenna Type: Ceramic and IPEX
- Frequency Range: 2412 - 2484MHz
- IO Port: 9
- Input Supply Voltage: 3.0 - 3.6V DC
- Interface: UART/GPIO/ADC/PWM
- Operating Temperature Range: -20°C to 85°C
- Package/Case: SMD-16
- SPI Flash: Default 8Mbit
- Security: WEP/WPA-PSK/WPA2-PSK
- UART Baudrate: Support 300 - 4608000 bps (Default 115200 bps)
- Wireless Criteria: 802.11 b/g/n
Top Features:
- Smallest 802.11b/g/n Wi-Fi SOC module
- 10 bit high precision ADC
- Ultra-low-power technology
- SMD-16 package for easy welding
It is a WIFI serial transceiver module based on ESP8266 SoC. The SOC has Integrated TCP/IP protocol stack. It is TTL serial communication interface and its parameters can be set by AT command. It is widely used in networking, smart home project when being connected to the WIFI router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, simultaneously controlling home appliances by the mobile phone.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
* Images are for illustration only; actual product may vary.
